Overview

SAP S/4HANA is a robust enterprise resource planning (ERP) solution, designed for large-scale enterprises by SAP SE. It covers core business processes such as finance, procurement, sales, and materials management, including quality management.

WSO2 SAP S/4HANA Inspection Lot provides a way to interact with the Inspection Lot API. The service allows to read and update inspection lots with their operations, characteristics, subsets and serial numbers, record inspection results and sample results, and create usage decisions.

Key Features

Read and update inspection lots, with their statuses, operations, characteristics and serial numbers
Record inspection results, single result values and sample results for inspection characteristics
Create usage decisions and post the related material document items

Setup guide

This connector uses Basic Authentication with an SAP S/4HANA Cloud communication user. Each S/4HANA API is exposed through a communication scenario, so the user must be assigned to a communication arrangement for the Quality Inspection Process Integration (SAP_COM_0318) scenario before the connector can call it.

All the apps used below are in the Communication Management group of the SAP Fiori launchpad.

Communication Management apps

Step 1: Create a communication user

Sign in to your SAP S/4HANA Cloud system as an administrator.
Open the Maintain Communication Users app and choose New.
Enter a user name and a description, set a password, and choose Create.

Note the user name and password. These are the credentials the connector uses.

Step 2: Create a communication system

Open the Communication Systems app and choose New.
Enter a system ID and a system name, and choose Create.
Under General > Technical Data, enter a host name and a Logical System (an uppercase ID of up to 10 characters, for example, INTEGRATOR). Some scenarios refuse to activate when the logical system is empty.
Under Users for Inbound Communication, add the communication user from Step 1 with the User Name and Password authentication method.
Choose Save.

Step 3: Create a communication arrangement

Open the Communication Arrangements app and choose New.

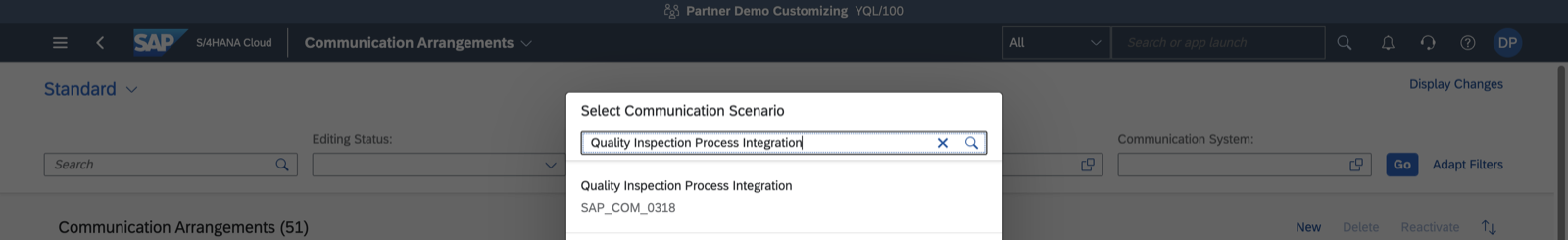

In the Scenario value help, search for Quality Inspection Process Integration and select SAP_COM_0318. This is the scenario that exposes API_INSPECTIONLOT_SRV, the service this connector calls.

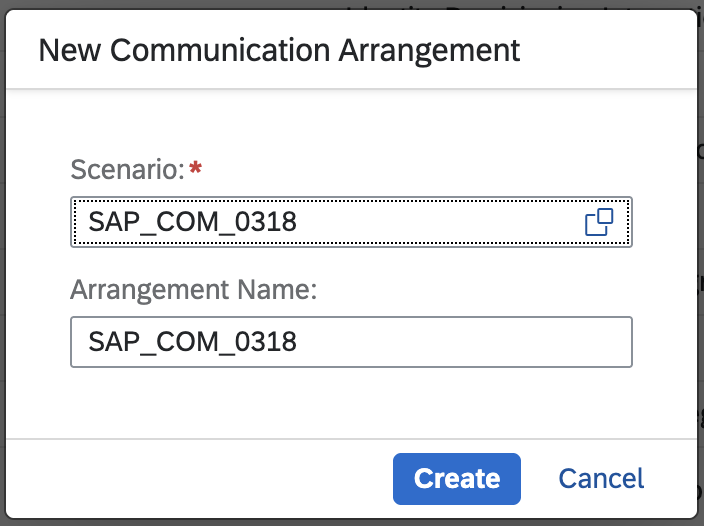

Enter a unique name for the arrangement and choose Create.
Select the communication system from Step 2. The communication user from Step 1 is filled in as the inbound user. If the scenario lists outbound services that the integration does not need, clear their Active check boxes so that no outbound user is required.
Choose Save.

Step 4: Note the hostname

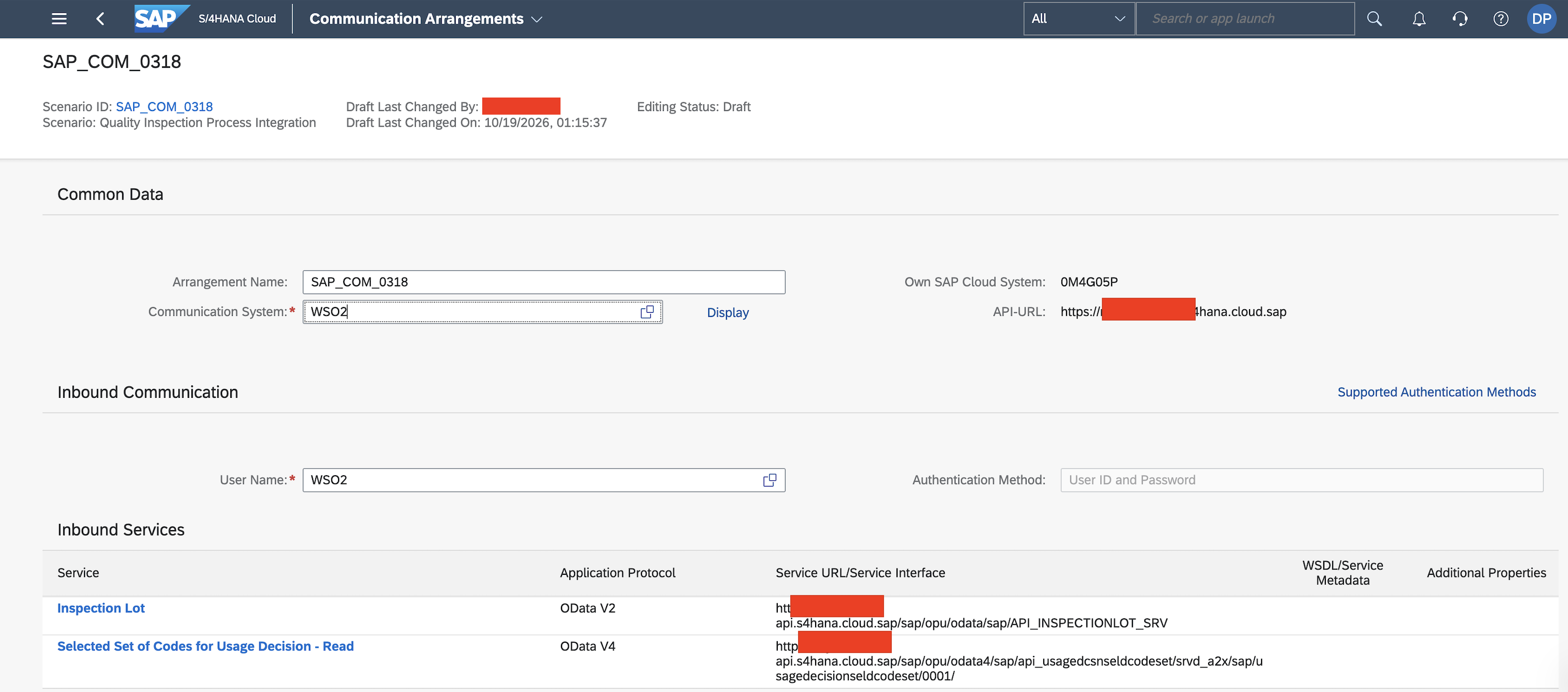

Open the saved arrangement. The API-URL next to Own SAP Cloud System shows the hostname (<unique id>-api.s4hana.cloud.sap).

View Hostname

You now have everything the connector needs:

hostname - the API hostname, for example, my123456-api.s4hana.cloud.sap
username - the communication user name
password - the communication user password

Quickstart

To use the sap.s4hana.api_inspectionlot_srv connector in your Ballerina application, modify the .bal file as follows:

Step 1: Import the module

Import the sap.s4hana.api_inspectionlot_srv module.


import ballerinax/sap.s4hana.api_inspectionlot_srv as inspectionlot;

Step 2: Instantiate a new connector

Use the hostname and credentials to initiate a client.


configurable string hostname = ?;
configurable string username = ?;
configurable string password = ?;

inspectionlot:Client inspectionlotClient = check new (
    {
      auth: {
        username,
        password
      }
    },
    hostname
);

Step 3: Invoke the connector operation

Now, utilize the available connector operations.


inspectionlot:CollectionOfA_InspectionLotWrapper listOfInspectionlots = check inspectionlotClient->listA_InspectionLots();

Step 4: Run the Ballerina application


bal run

Clients

sap.s4hana.api_inspectionlot_srv: Client

Isolated

In the SAP system, you process quality inspections on the basis of inspection lots. The data relating to a quality inspection is grouped into several entities. With this service it is possible, for example, to update inspection lot header data or to create inspection results and usage decisions.

Constructor

Gets invoked to initialize the connector.

init (ConnectionConfig config, string hostname, int port)

config ConnectionConfig - The configurations to be used when initializing the connector

hostname string -

port int 443 -

createA_InspLotMatlDocItem

Isolated FunctionRemote Function

function createA_InspLotMatlDocItem(CreateA_InspLotMatlDocItem payload, map<string|string[]> headers) returns A_InspLotMatlDocItemWrapper|error

Creates a stock posting for an inspection lot in the form of a material document item.

Parameters

payload CreateA_InspLotMatlDocItem - New entity

headers map<string|string[]> (default {}) - Headers to be sent with the request

Return Type

A_InspLotMatlDocItemWrapper|error - Created entity

createA_InspLotUsageDecision

Isolated FunctionRemote Function

function createA_InspLotUsageDecision(CreateA_InspLotUsageDecision payload, map<string|string[]> headers) returns A_InspLotUsageDecisionWrapper|error

Creates a usage decision.

Parameters

payload CreateA_InspLotUsageDecision - New entity

headers map<string|string[]> (default {}) - Headers to be sent with the request

Return Type

A_InspLotUsageDecisionWrapper|error - Created entity

createA_InspSampleResult

Isolated FunctionRemote Function

function createA_InspSampleResult(CreateA_InspSampleResult payload, map<string|string[]> headers) returns A_InspSampleResultWrapper|error

Not supported.

Parameters

payload CreateA_InspSampleResult - New entity

headers map<string|string[]> (default {}) - Headers to be sent with the request

Return Type

A_InspSampleResultWrapper|error - Created entity

createA_InspectionLot

Isolated FunctionRemote Function

function createA_InspectionLot(CreateA_InspectionLot payload, map<string|string[]> headers) returns A_InspectionLotWrapper|error

Creates an inspection lot.

Parameters

payload CreateA_InspectionLot - New entity

headers map<string|string[]> (default {}) - Headers to be sent with the request

Return Type

A_InspectionLotWrapper|error - Created entity

createA_InspectionResult

Isolated FunctionRemote Function

function createA_InspectionResult(CreateA_InspectionResult payload, map<string|string[]> headers) returns A_InspectionResultWrapper|error

Creates a summarized inspection result.

Parameters

payload CreateA_InspectionResult - New entity

headers map<string|string[]> (default {}) - Headers to be sent with the request

Return Type

A_InspectionResultWrapper|error - Created entity

createA_InspectionResultValue

Isolated FunctionRemote Function

function createA_InspectionResultValue(CreateA_InspectionResultValue payload, map<string|string[]> headers) returns A_InspectionResultValueWrapper|error

Not supported.

Parameters

payload CreateA_InspectionResultValue - New entity

headers map<string|string[]> (default {}) - Headers to be sent with the request

Return Type

A_InspectionResultValueWrapper|error - Created entity

createA_InspectionSubset

Isolated FunctionRemote Function

function createA_InspectionSubset(CreateA_InspectionSubset payload, map<string|string[]> headers) returns A_InspectionSubsetWrapper|error

Creates an inspection point and related inspection point characteristics.

Parameters

payload CreateA_InspectionSubset - New entity

headers map<string|string[]> (default {}) - Headers to be sent with the request

Return Type

A_InspectionSubsetWrapper|error - Created entity

createA_InspectionSubsetTrigger_valuation

Isolated FunctionRemote Function

function createA_InspectionSubsetTrigger_valuation(map<string|string[]> headers, *CreateA_InspectionSubsetTrigger_valuationQueries queries) returns A_InspectionSubsetWrapper|error

Triggers the automatic valuation of an inspection point.

Parameters

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *CreateA_InspectionSubsetTrigger_valuationQueries - Queries to be sent with the request

Return Type

A_InspectionSubsetWrapper|error - Success

createInspResultValueOfA_InspectionCharacteristic

Isolated FunctionRemote Function

function createInspResultValueOfA_InspectionCharacteristic(string InspectionLot, string InspPlanOperationInternalID, string InspectionCharacteristic, CreateA_InspectionResultValue payload, map<string|string[]> headers) returns A_InspectionResultValueWrapper|error

Creates a single inspection result for an inspection characteristic.

Parameters

InspectionLot string - Inspection Lot Number

InspPlanOperationInternalID string - Current Node Number from Order Counter

InspectionCharacteristic string - Inspection Characteristic Number

payload CreateA_InspectionResultValue - New entity

headers map<string|string[]> (default {}) - Headers to be sent with the request

Return Type

A_InspectionResultValueWrapper|error - Created entity

createInspSmplResultOfA_InspectionCharacteristic

Isolated FunctionRemote Function

function createInspSmplResultOfA_InspectionCharacteristic(string InspectionLot, string InspPlanOperationInternalID, string InspectionCharacteristic, CreateA_InspSampleResult payload, map<string|string[]> headers) returns A_InspSampleResultWrapper|error

Creates a summarized inspection result for an inspection characteristic of an inspection point.

Parameters

InspectionLot string - Inspection Lot Number

InspPlanOperationInternalID string - Current Node Number from Order Counter

InspectionCharacteristic string - Inspection Characteristic Number

payload CreateA_InspSampleResult - New entity

headers map<string|string[]> (default {}) - Headers to be sent with the request

Return Type

A_InspSampleResultWrapper|error - Created entity

getA_InspLotMatlDocItem

Isolated FunctionRemote Function

function getA_InspLotMatlDocItem(string InspectionLot, string InspLotMatlDocItem, map<string|string[]> headers, *GetA_InspLotMatlDocItemQueries queries) returns A_InspLotMatlDocItemWrapper|error

Reads a specific stock posting for an inspection lot.

Parameters

InspectionLot string - Inspection Lot Number

InspLotMatlDocItem string - Internal Counter for DB Objects

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *GetA_InspLotMatlDocItemQueries - Queries to be sent with the request

Return Type

A_InspLotMatlDocItemWrapper|error - Retrieved entity

getA_InspLotMatlDocItmSrlNmbr

Isolated FunctionRemote Function

function getA_InspLotMatlDocItmSrlNmbr(string InspectionLot, string InspLotMatlDocItem, string Equipment, map<string|string[]> headers, *GetA_InspLotMatlDocItmSrlNmbrQueries queries) returns A_InspLotMatlDocItmSrlNmbrWrapper|error

Reads information on a specific serial number for a stock posting for an inspection lot.

Parameters

InspectionLot string - Inspection Lot Number

InspLotMatlDocItem string - Internal Counter for DB Objects

Equipment string - Equipment Number

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *GetA_InspLotMatlDocItmSrlNmbrQueries - Queries to be sent with the request

Return Type

A_InspLotMatlDocItmSrlNmbrWrapper|error - Retrieved entity

getA_InspLotSerialNumber

Isolated FunctionRemote Function

function getA_InspLotSerialNumber(string InspectionLot, string SerialNumber, map<string|string[]> headers, *GetA_InspLotSerialNumberQueries queries) returns A_InspLotSerialNumberWrapper|error

Reads a specific serial number for an inspection lot.

Parameters

InspectionLot string - Inspection Lot Number

SerialNumber string - Serial Number

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *GetA_InspLotSerialNumberQueries - Queries to be sent with the request

Return Type

A_InspLotSerialNumberWrapper|error - Retrieved entity

getA_InspLotUsageDecision

Isolated FunctionRemote Function

function getA_InspLotUsageDecision(string InspectionLot, map<string|string[]> headers, *GetA_InspLotUsageDecisionQueries queries) returns A_InspLotUsageDecisionWrapper|error

Reads a specific usage decision for an inspection lot.

Parameters

InspectionLot string - Inspection Lot Number

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *GetA_InspLotUsageDecisionQueries - Queries to be sent with the request

Return Type

A_InspLotUsageDecisionWrapper|error - Retrieved entity

getA_InspSampleCharacteristic

Isolated FunctionRemote Function

function getA_InspSampleCharacteristic(string InspectionLot, string InspPlanOperationInternalID, string InspectionCharacteristic, string InspectionSubsetInternalID, map<string|string[]> headers, *GetA_InspSampleCharacteristicQueries queries) returns A_InspSampleCharacteristicWrapper|error

Reads a specific inspection characteristic of an inspection point.

Parameters

InspectionLot string - Inspection Lot Number

InspPlanOperationInternalID string - Current Node Number from Order Counter

InspectionCharacteristic string - Inspection Characteristic Number

InspectionSubsetInternalID string - Inspection Sample Number

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *GetA_InspSampleCharacteristicQueries - Queries to be sent with the request

Return Type

A_InspSampleCharacteristicWrapper|error - Retrieved entity

getA_InspSampleResult

Isolated FunctionRemote Function

function getA_InspSampleResult(string InspectionLot, string InspPlanOperationInternalID, string InspectionCharacteristic, string InspectionSubsetInternalID, map<string|string[]> headers, *GetA_InspSampleResultQueries queries) returns A_InspSampleResultWrapper|error

Reads a specific summarized inspection result recorded for an inspection point.

Parameters

InspectionLot string - Inspection Lot Number

InspPlanOperationInternalID string - Current Node Number from Order Counter

InspectionCharacteristic string - Inspection Characteristic Number

InspectionSubsetInternalID string - Number of Partial Sample

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *GetA_InspSampleResultQueries - Queries to be sent with the request

Return Type

A_InspSampleResultWrapper|error - Retrieved entity

getA_InspectionCharacteristic

Isolated FunctionRemote Function

function getA_InspectionCharacteristic(string InspectionLot, string InspPlanOperationInternalID, string InspectionCharacteristic, map<string|string[]> headers, *GetA_InspectionCharacteristicQueries queries) returns A_InspectionCharacteristicWrapper|error

Reads a specific inspection characteristic.

Parameters

InspectionLot string - Inspection Lot Number

InspPlanOperationInternalID string - Current Node Number from Order Counter

InspectionCharacteristic string - Inspection Characteristic Number

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *GetA_InspectionCharacteristicQueries - Queries to be sent with the request

Return Type

A_InspectionCharacteristicWrapper|error - Retrieved entity

getA_InspectionLot

Isolated FunctionRemote Function

function getA_InspectionLot(string InspectionLot, map<string|string[]> headers, *GetA_InspectionLotQueries queries) returns A_InspectionLotWrapper|error

Reads the header data of a specific inspection lot.

Parameters

InspectionLot string - Inspection Lot Number

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *GetA_InspectionLotQueries - Queries to be sent with the request

Return Type

A_InspectionLotWrapper|error - Retrieved entity

getA_InspectionLotWithStatus

Isolated FunctionRemote Function

function getA_InspectionLotWithStatus(string InspectionLot, map<string|string[]> headers, *GetA_InspectionLotWithStatusQueries queries) returns A_InspectionLotWithStatusWrapper|error

Reads inspection lot status information by its key.

Parameters

InspectionLot string - Inspection Lot Number

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *GetA_InspectionLotWithStatusQueries - Queries to be sent with the request

Return Type

A_InspectionLotWithStatusWrapper|error - Retrieved entity

getA_InspectionOperation

Isolated FunctionRemote Function

function getA_InspectionOperation(string InspectionLot, string InspPlanOperationInternalID, map<string|string[]> headers, *GetA_InspectionOperationQueries queries) returns A_InspectionOperationWrapper|error

Reads a specific inspection operation.

Parameters

InspectionLot string - Inspection Lot Number

InspPlanOperationInternalID string - Current Node Number from Order Counter

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *GetA_InspectionOperationQueries - Queries to be sent with the request

Return Type

A_InspectionOperationWrapper|error - Retrieved entity

getA_InspectionResult

Isolated FunctionRemote Function

function getA_InspectionResult(string InspectionLot, string InspPlanOperationInternalID, string InspectionCharacteristic, map<string|string[]> headers, *GetA_InspectionResultQueries queries) returns A_InspectionResultWrapper|error

Reads a specific summarized inspection result for an inspection characteristic.

Parameters

InspectionLot string - Inspection Lot Number

InspPlanOperationInternalID string - Current Node Number from Order Counter

InspectionCharacteristic string - Inspection Characteristic Number

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *GetA_InspectionResultQueries - Queries to be sent with the request

Return Type

A_InspectionResultWrapper|error - Retrieved entity

getA_InspectionResultValue

Isolated FunctionRemote Function

function getA_InspectionResultValue(string InspectionLot, string InspPlanOperationInternalID, string InspectionCharacteristic, string InspResultValueInternalID, map<string|string[]> headers, *GetA_InspectionResultValueQueries queries) returns A_InspectionResultValueWrapper|error

Reads a specific single inspection result value.

Parameters

InspectionLot string - Inspection Lot Number

InspPlanOperationInternalID string - Current Node Number from Order Counter

InspectionCharacteristic string - Inspection Characteristic Number

InspResultValueInternalID string - Number of Individual Result

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *GetA_InspectionResultValueQueries - Queries to be sent with the request

Return Type

A_InspectionResultValueWrapper|error - Retrieved entity

getA_InspectionSubset

Isolated FunctionRemote Function

function getA_InspectionSubset(string InspectionLot, string InspPlanOperationInternalID, string InspectionSubsetInternalID, map<string|string[]> headers, *GetA_InspectionSubsetQueries queries) returns A_InspectionSubsetWrapper|error

Reads a specific inspection point.

Parameters

InspectionLot string - Inspection Lot Number

InspPlanOperationInternalID string - Current Node Number from Order Counter

InspectionSubsetInternalID string - Sample Number (Based on an Inspection Point)

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *GetA_InspectionSubsetQueries - Queries to be sent with the request

Return Type

A_InspectionSubsetWrapper|error - Retrieved entity

getInspectionLotWithStatusOfA_InspectionLot

Isolated FunctionRemote Function

function getInspectionLotWithStatusOfA_InspectionLot(string InspectionLot, map<string|string[]> headers, *GetInspectionLotWithStatusOfA_InspectionLotQueries queries) returns A_InspectionLotWithStatusWrapper|error

Reads status information for an inspection lot.

Parameters

InspectionLot string - Inspection Lot Number

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *GetInspectionLotWithStatusOfA_InspectionLotQueries - Queries to be sent with the request

Return Type

A_InspectionLotWithStatusWrapper|error - Retrieved entity

listA_InspLotMatlDocItems

Isolated FunctionRemote Function

function listA_InspLotMatlDocItems(map<string|string[]> headers, *ListA_InspLotMatlDocItemsQueries queries) returns CollectionOfA_InspLotMatlDocItemWrapper|error

Reads stock postings for inspection lots in the form of material document items.

Parameters

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *ListA_InspLotMatlDocItemsQueries - Queries to be sent with the request

Return Type

CollectionOfA_InspLotMatlDocItemWrapper|error - Retrieved entities

listA_InspLotMatlDocItmSrlNmbrs

Isolated FunctionRemote Function

function listA_InspLotMatlDocItmSrlNmbrs(map<string|string[]> headers, *ListA_InspLotMatlDocItmSrlNmbrsQueries queries) returns CollectionOfA_InspLotMatlDocItmSrlNmbrWrapper|error

Reads information on serial numbers for stock postings for inspection lots.

Parameters

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *ListA_InspLotMatlDocItmSrlNmbrsQueries - Queries to be sent with the request

Return Type

CollectionOfA_InspLotMatlDocItmSrlNmbrWrapper|error - Retrieved entities

listA_InspLotSerialNumbers

Isolated FunctionRemote Function

function listA_InspLotSerialNumbers(map<string|string[]> headers, *ListA_InspLotSerialNumbersQueries queries) returns CollectionOfA_InspLotSerialNumberWrapper|error

Reads serial numbers for inspection lots.

Parameters

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *ListA_InspLotSerialNumbersQueries - Queries to be sent with the request

Return Type

CollectionOfA_InspLotSerialNumberWrapper|error - Retrieved entities

listA_InspLotUsageDecisions

Isolated FunctionRemote Function

function listA_InspLotUsageDecisions(map<string|string[]> headers, *ListA_InspLotUsageDecisionsQueries queries) returns CollectionOfA_InspLotUsageDecisionWrapper|error

Reads usage decisions made for inspection lots.

Parameters

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *ListA_InspLotUsageDecisionsQueries - Queries to be sent with the request

Return Type

CollectionOfA_InspLotUsageDecisionWrapper|error - Retrieved entities

listA_InspSampleCharacteristics

Isolated FunctionRemote Function

function listA_InspSampleCharacteristics(map<string|string[]> headers, *ListA_InspSampleCharacteristicsQueries queries) returns CollectionOfA_InspSampleCharacteristicWrapper|error

Reads inspection characteristics of inspection points.

Parameters

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *ListA_InspSampleCharacteristicsQueries - Queries to be sent with the request

Return Type

CollectionOfA_InspSampleCharacteristicWrapper|error - Retrieved entities

listA_InspSampleResults

Isolated FunctionRemote Function

function listA_InspSampleResults(map<string|string[]> headers, *ListA_InspSampleResultsQueries queries) returns CollectionOfA_InspSampleResultWrapper|error

Reads summarized inspection results recorded for inspection points.

Parameters

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *ListA_InspSampleResultsQueries - Queries to be sent with the request

Return Type

CollectionOfA_InspSampleResultWrapper|error - Retrieved entities

listA_InspectionCharacteristics

Isolated FunctionRemote Function

function listA_InspectionCharacteristics(map<string|string[]> headers, *ListA_InspectionCharacteristicsQueries queries) returns CollectionOfA_InspectionCharacteristicWrapper|error

Reads inspection characteristics.

Parameters

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *ListA_InspectionCharacteristicsQueries - Queries to be sent with the request

Return Type

CollectionOfA_InspectionCharacteristicWrapper|error - Retrieved entities

listA_InspectionLotWithStatuses

Isolated FunctionRemote Function

function listA_InspectionLotWithStatuses(map<string|string[]> headers, *ListA_InspectionLotWithStatusesQueries queries) returns CollectionOfA_InspectionLotWithStatusWrapper|error

Reads inspection lot status information.

Parameters

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *ListA_InspectionLotWithStatusesQueries - Queries to be sent with the request

Return Type

CollectionOfA_InspectionLotWithStatusWrapper|error - Retrieved entities

listA_InspectionLots

Isolated FunctionRemote Function

function listA_InspectionLots(map<string|string[]> headers, *ListA_InspectionLotsQueries queries) returns CollectionOfA_InspectionLotWrapper|error

Reads inspection lots with data at header level.

Parameters

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *ListA_InspectionLotsQueries - Queries to be sent with the request

Return Type

CollectionOfA_InspectionLotWrapper|error - Retrieved entities

listA_InspectionOperations

Isolated FunctionRemote Function

function listA_InspectionOperations(map<string|string[]> headers, *ListA_InspectionOperationsQueries queries) returns CollectionOfA_InspectionOperationWrapper|error

Reads inspection operations.

Parameters

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *ListA_InspectionOperationsQueries - Queries to be sent with the request

Return Type

CollectionOfA_InspectionOperationWrapper|error - Retrieved entities

listA_InspectionResultValues

Isolated FunctionRemote Function

function listA_InspectionResultValues(map<string|string[]> headers, *ListA_InspectionResultValuesQueries queries) returns CollectionOfA_InspectionResultValueWrapper|error

Reads single inspection result values.

Parameters

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *ListA_InspectionResultValuesQueries - Queries to be sent with the request

Return Type

CollectionOfA_InspectionResultValueWrapper|error - Retrieved entities

listA_InspectionResults

Isolated FunctionRemote Function

function listA_InspectionResults(map<string|string[]> headers, *ListA_InspectionResultsQueries queries) returns CollectionOfA_InspectionResultWrapper|error

Reads summarized inspection results.

Parameters

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *ListA_InspectionResultsQueries - Queries to be sent with the request

Return Type

CollectionOfA_InspectionResultWrapper|error - Retrieved entities

listA_InspectionSubsets

Isolated FunctionRemote Function

function listA_InspectionSubsets(map<string|string[]> headers, *ListA_InspectionSubsetsQueries queries) returns CollectionOfA_InspectionSubsetWrapper|error

Reads inspection points.

Parameters

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *ListA_InspectionSubsetsQueries - Queries to be sent with the request

Return Type

CollectionOfA_InspectionSubsetWrapper|error - Retrieved entities

listInspLotMatlDocItmSrlNmbrsOfA_InspLotMatlDocItem

Isolated FunctionRemote Function

function listInspLotMatlDocItmSrlNmbrsOfA_InspLotMatlDocItem(string InspectionLot, string InspLotMatlDocItem, map<string|string[]> headers, *ListInspLotMatlDocItmSrlNmbrsOfA_InspLotMatlDocItemQueries queries) returns CollectionOfA_InspLotMatlDocItmSrlNmbrWrapper|error

Reads a specific stock posting with serial numbers posted for an inspection lot.

Parameters

InspectionLot string - Inspection Lot Number

InspLotMatlDocItem string - Internal Counter for DB Objects

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *ListInspLotMatlDocItmSrlNmbrsOfA_InspLotMatlDocItemQueries - Queries to be sent with the request

Return Type

CollectionOfA_InspLotMatlDocItmSrlNmbrWrapper|error - Retrieved entities

listInspResultValuesOfA_InspectionCharacteristic

Isolated FunctionRemote Function

function listInspResultValuesOfA_InspectionCharacteristic(string InspectionLot, string InspPlanOperationInternalID, string InspectionCharacteristic, map<string|string[]> headers, *ListInspResultValuesOfA_InspectionCharacteristicQueries queries) returns CollectionOfA_InspectionResultValueWrapper|error

Reads single inspection results for an inspection characteristic.

Parameters

InspectionLot string - Inspection Lot Number

InspPlanOperationInternalID string - Current Node Number from Order Counter

InspectionCharacteristic string - Inspection Characteristic Number

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *ListInspResultValuesOfA_InspectionCharacteristicQueries - Queries to be sent with the request

Return Type

CollectionOfA_InspectionResultValueWrapper|error - Retrieved entities

listInspSmplResultsOfA_InspectionCharacteristic

Isolated FunctionRemote Function

function listInspSmplResultsOfA_InspectionCharacteristic(string InspectionLot, string InspPlanOperationInternalID, string InspectionCharacteristic, map<string|string[]> headers, *ListInspSmplResultsOfA_InspectionCharacteristicQueries queries) returns CollectionOfA_InspSampleResultWrapper|error

Reads a summarized inspection result for an inspection characteristic of an inspection point.

Parameters

InspectionLot string - Inspection Lot Number

InspPlanOperationInternalID string - Current Node Number from Order Counter

InspectionCharacteristic string - Inspection Characteristic Number

headers map<string|string[]> (default {}) - Headers to be sent with the request

queries *ListInspSmplResultsOfA_InspectionCharacteristicQueries - Queries to be sent with the request

Return Type

CollectionOfA_InspSampleResultWrapper|error - Retrieved entities

patchA_InspLotUsageDecision

Isolated FunctionRemote Function

function patchA_InspLotUsageDecision(string InspectionLot, Modified\ A_InspLotUsageDecisionType payload, map<string|string[]> headers) returns Response|error

Updates a specific usage decision for an inspection lot.

Parameters

InspectionLot string - Inspection Lot Number

payload Modified\ A_InspLotUsageDecisionType - New property values

headers map<string|string[]> (default {}) - Headers to be sent with the request

Return Type

Response|error - Success

patchA_InspSampleResult

Isolated FunctionRemote Function

function patchA_InspSampleResult(string InspectionLot, string InspPlanOperationInternalID, string InspectionCharacteristic, string InspectionSubsetInternalID, Modified\ A_InspSampleResultType payload, map<string|string[]> headers) returns Response|error

Updates a specific summarized inspection result recorded for an inspection point.

Parameters

InspectionLot string - Inspection Lot Number

InspPlanOperationInternalID string - Current Node Number from Order Counter

InspectionCharacteristic string - Inspection Characteristic Number

InspectionSubsetInternalID string - Number of Partial Sample

payload Modified\ A_InspSampleResultType - New property values

headers map<string|string[]> (default {}) - Headers to be sent with the request

Return Type

Response|error - Success

patchA_InspectionLot

Isolated FunctionRemote Function

function patchA_InspectionLot(string InspectionLot, Modified\ A_InspectionLotType payload, map<string|string[]> headers) returns Response|error

Updates the header data of a specific inspection lot.

Parameters

InspectionLot string - Inspection Lot Number

payload Modified\ A_InspectionLotType - New property values

headers map<string|string[]> (default {}) - Headers to be sent with the request

Return Type

Response|error - Success

patchA_InspectionResult

Isolated FunctionRemote Function

function patchA_InspectionResult(string InspectionLot, string InspPlanOperationInternalID, string InspectionCharacteristic, Modified\ A_InspectionResultType payload, map<string|string[]> headers) returns Response|error

Updates a specific summarized inspection result for an inspection characteristic.

Parameters

InspectionLot string - Inspection Lot Number

InspPlanOperationInternalID string - Current Node Number from Order Counter

InspectionCharacteristic string - Inspection Characteristic Number

payload Modified\ A_InspectionResultType - New property values

headers map<string|string[]> (default {}) - Headers to be sent with the request

Return Type

Response|error - Success

patchA_InspectionResultValue

Isolated FunctionRemote Function

function patchA_InspectionResultValue(string InspectionLot, string InspPlanOperationInternalID, string InspectionCharacteristic, string InspResultValueInternalID, Modified\ A_InspectionResultValueType payload, map<string|string[]> headers) returns Response|error

Updates a specific single inspection result value.

Parameters

InspectionLot string - Inspection Lot Number

InspPlanOperationInternalID string - Current Node Number from Order Counter

InspectionCharacteristic string - Inspection Characteristic Number

InspResultValueInternalID string - Number of Individual Result

payload Modified\ A_InspectionResultValueType - New property values

headers map<string|string[]> (default {}) - Headers to be sent with the request

Return Type

Response|error - Success

patchA_InspectionSubset

Isolated FunctionRemote Function

function patchA_InspectionSubset(string InspectionLot, string InspPlanOperationInternalID, string InspectionSubsetInternalID, Modified\ A_InspectionSubsetType payload, map<string|string[]> headers) returns Response|error

Updates a specific inspection point.

Parameters

InspectionLot string - Inspection Lot Number

InspPlanOperationInternalID string - Current Node Number from Order Counter

InspectionSubsetInternalID string - Sample Number (Based on an Inspection Point)

payload Modified\ A_InspectionSubsetType - New property values

headers map<string|string[]> (default {}) - Headers to be sent with the request

Return Type

Response|error - Success

performBatchOperation

Isolated FunctionRemote Function

function performBatchOperation(Request request, map<string|string[]> headers) returns Response|error

Send a group of requests

Parameters

request Request - Batch request

headers map<string|string[]> (default {}) - Headers to be sent with the request

Return Type

Response|error - Batch response

Records

sap.s4hana.api_inspectionlot_srv: A_InspectionCharacteristic

Fields

InspectionLot? string - Inspection Lot Number

InspPlanOperationInternalID? string - Current Node Number from Order Counter

InspectionCharacteristic? string - Inspection Characteristic Number

InspectionSpecificationText? string? - Short Text for Inspection Characteristic

HasInspCharcPrtlSmpl? string? - Partial Samples Possible

InspSpecIsQuantitative? boolean? -

InspSpecIsMeasuredValueRqd? string? - Measured Values Must Be Recorded

InspSpecIsSelectedSetRequired? string? - Reference to Characteristic Attribute Required

InspSpecIsLongTermInspection? string? -

InspSpecRecordingType? string? -

InspResultIsDocumentationRqd? string? - Documentation Required for Inspection Results

InspSpecCharcCategory? string? - Characteristic Category

InspSpecResultCalculation? string? - Calculated Characteristic

InspCharcIsNotPlanned? boolean? -

InspectionMethod? string? -

InspectionMethodPlant? string? -

InspectionMethodVersion? string? - Version Number of Inspection Method

InspectionSpecificationPlant? string? - Plant for Master Inspection Characteristic

InspectionSpecification? string? - Master Inspection Characteristic

InspectionSpecificationVersion? string? - Version Number of Master Inspection Characteristic

InspectionCharacteristicStatus? string? - Specification Record Status

InspSpecDecimalPlaces? int? - Number of Places to the Right of a Decimal Point (Accuracy)

InspectionSpecificationUnit? string? - Unit of Measurement in Which Quantitative Data Is Stored

InspSampleValuationRule? string? - Valuation Rule

QuantityUnit? string? - Sample Unit of Measure

InspCharacteristicSampleSize? Signed32? - Sample Size that Has to Be Inspected for a Characteristic

InspCharacteristicSampleUnit? string? - Sample Unit of Measure

InspSpecSampleQuantityFactor? string? - Sample Quantity Factor for Sample(Mult. Sample Unit of Msr.)

InspSpecTargetValue? decimal|string? - Target Value for a Quantitative Characteristic

InspSpecFrmtdTargetValue? string? - Target Value for Quantitative Characteristic (Formatted)

InspSpecHasTargetValue? string? - Value Not Initial If Set

InspSpecUpperLimit? decimal|string? - Upper Specification Limit

InspSpecFrmtdUpperLimit? string? - Upper Specification Limit (Formatted)

InspSpecHasUpperLimit? string? - Value Not Initial If Set

InspSpecLowerLimit? decimal|string? - Lower Specification Limit

InspSpecFrmtdLowerLimit? string? - Lower Specification Limit (Formatted)

InspSpecHasLowerLimit? string? - Value Not Initial If Set

InspSpecImportanceCode? string? - Weighting of Characteristic

InspLotTestEquipInternalID? string? - Assigned Test Equipment

SelectedCodeSet? string? - Assigned Code Group or Selected Set

SelectedCodeSetPlant? string? - Plant of the Assigned Selected Set

InspectorQualification? string? - Inspector Qualification

InspSpecInformationField1? string? - Text Line for Additional Information

InspSpecInformationField2? string? - Text Line for Additional Information

InspSpecInformationField3? string? - Text Line for Additional Information

InspectionScope? string? - Quantity to Be Inspected

InspCharcQuantity? string? - Quantity to Be Inspected

InspSpecControlIndicators? string? - Cntrl Indicator String for Insp. Char./Master Insp. Char.

CharacteristicAttributeCatalog? string? - Catalog Type of Assigned Code Group or Selected Set

UnplndCharcInspSubsetIntID? string? - Unplanned Characteristic Was Created with this Sample No.

InspLotDynamicRule? string? -

InspCharcConfirmationNumber? string? - Confirmation Number for Inspection Characteristic

ChangedDateTime? string? - UTC Time Stamp in Short Form (YYYYMMDDhhmmss)

to_InspResultValue? A_InspectionCharacteristic_to_InspResultValue -

to_InspSmplResult? A_InspectionCharacteristic_to_InspSmplResult -

sap.s4hana.api_inspectionlot_srv: A_InspectionCharacteristic_to_InspResultValue

Fields

results? A_InspectionResultValue[] -

sap.s4hana.api_inspectionlot_srv: A_InspectionCharacteristic_to_InspSmplResult

Fields

results? A_InspSampleResult[] -

sap.s4hana.api_inspectionlot_srv: A_InspectionCharacteristicWrapper

Fields

d? A_InspectionCharacteristic -

sap.s4hana.api_inspectionlot_srv: A_InspectionLot

Fields

InspectionLot? string - Inspection Lot Number

Material? string? - Material Number

Batch? string? - Batch Number

Plant? string? -

InspectionLotOrigin? string? -

OrderInternalBillOfOperations? string? - Routing number of operations in the order

ManufacturingOrder? string? - Order Number (Production Order)

InspectionLotText? string? -

InspectionLotType? string? -

InspectionLotQuantity? string? -

InspectionLotActualQuantity? string? -

InspectionLotDefectiveQuantity? string? -

InspectionLotQuantityUnit? string? - Base Unit of Measure for Inspection Lot Quantity

InspLotCreatedOnLocalDate? string? - Date in Time Zone Where Lot Created

InspSubsetFieldCombination? string? - Identifier for Inspection Point Field Combination

InspLotNmbrOpenLongTermCharc? int? -

StatusObject? string? -

StatusObjectCategory? string? -

InspectionLotObjectText? string? - Short Text for Inspection Object

StatusProfile? string? -

MatlQualityAuthorizationGroup? string? - Material Authorization Group for Activities in QM

InspectionLotHasQuantity? boolean? -

InspLotIsCreatedAutomatically? boolean? - Inspection Lot Is Created Automatically

InspectionLotHasPartialLots? boolean? -

InspectionLotHasAppraisalCosts? boolean? - Record Appraisal Costs in Individual QM Order

InspLotHasSubsets? boolean? - Inspection with Inspection Points

InspLotIsAutomUsgeDcsnPossible? boolean? -

PurchasingDocumentCategory? string? - Source Inspection

InspLotHasConfignSpecification? boolean? - Inspection Specifications from Configuration

GoodsReceiptIsMovedToBlkdStock? string? -

InspLotIsDocumentationRequired? boolean? -

InspLotIsTaskListRequired? boolean? -

InspLotHasManualSampleSize? boolean? - Enter Sample Manually

InspLotHasMaterialSpec? boolean? -

InspectionLotApproval? string? -

InspLotDigitalSgntrResultsRecg? string? - Digital Signature for Insp. Lot in Results Recording

InspLotDigitalSgntrInUsgeDcsn? string? -

InspLotIsBatchRequired? boolean? - Approved Batch Record Required

InspLotUsageInStabilityStudy? string? - Inspection Lot for Stability Study

InspLotIsStockPostingCompleted? boolean? -

InspectionLotHasUsageDecision? boolean? -

NumberOfSerialNumbers? Signed32? - Number of serial numbers

InspLotIsSerialNmbrPossible? boolean? - Serial Numbers Possible for Inspection Lot

InspectionLotIsSkipped? boolean? -

InspectionLotIsFullInspection? boolean? -

InspectionLotDynamicLevel? string? - Level at Which Dynamic Modification Parameters Are Defined

SamplingProcedure? string? -

InspLotCreatedOnLocalTime? string? - Time in Time Zone Where Lot Created

InspectionLotCreatedBy? string? - Name of User Who Created the Data Record

InspectionLotCreatedOn? string? - System Date on Which Data Record Was Created

InspectionLotCreatedOnTime? string? - System Time of Creation

InspectionLotChangedBy? string? - Name of User Who Last Changed Data Record

InspectionLotChangeDate? string? - System Date on Which Data Record Was Changed

InspectionLotChangeTime? string? - System Time of Change

ChangedDateTime? string? - UTC Time Stamp in Short Form (YYYYMMDDhhmmss)

InspectionLotStartDate? string? - Start Date of Inspection in Local Time Zone

InspectionLotStartTime? string? -

InspectionLotEndDate? string? - End Date of Inspection in Local Time Zone

InspectionLotEndTime? string? -

BillOfOperationsType? string? -

BillOfOperationsGroup? string? -

BillOfOperationsUsage? string? -

BillOfOperationsVariant? string? -

BillOfOperationsChangeStateID? string? - Internal counter

InspectionSubsetType? string? -

SmplDrawingProcedure? string? -

SmplDrawingProcedureVersion? string? - Version No. of the Sample-Drawing Procedure

SmplDrwgProcedIsConfRequired? boolean? - Confirmation Required for Sample Drawing

InspLotSelectionMaterial? string? - Material Number

InspLotSelMatlRevisionLvl? string? -

InspLotSelectionPlant? string? -

InspLotSelectionSupplier? string? - Supplier's Account Number

InspLotSelectionManufacturer? string? - Number of Manufacturer

InspLotSelectionCustomer? string? - Account number of customer

InspLotSelBillOfOperationsUsge? string? - Task List Usage

InspLotSelectionValidFromDate? string? - Key Date for Selecting Records or Changing Task Lists

ProductionVersion? string? -

SalesOperationsPlanningOrder? string? -

IsBusinessPurposeCompleted? string? - Business Purpose Completed Flag

Customer? string? -

Supplier? string? - Supplier's Account Number

BatchBySupplier? string? - Supplier Batch Number

Manufacturer? string? - Number of Manufacturer

ManufacturerPartNmbr? string? -

MaterialRevisionLevel? string? -

MaterialIsBatchManaged? boolean? -

BatchStorageLocation? string? -

MaterialCompIsSpecialStock? string? - Special Stock Indicator

PurchasingOrganization? string? -

PurchasingDocument? string? -

PurchasingDocumentItem? string? -

ScheduleLine? string? - Delivery Schedule Line Counter

AccountingDocumentType? string? -

MaterialDocumentYear? string? -

MaterialDocument? string? - Number of Material Document

MaterialDocumentItem? string? -

MatlDocLatestPostgDate? string? - Posting Date in the Document

GoodsMovementType? string? - Movement Type (Inventory Management)

InspectionLotPlant? string? -

InspectionLotStorageLocation? string? - Storage Location for Inspection Lot Stock

Warehouse? string? - Warehouse Number / Warehouse Complex

StorageType? string? -

StorageBin? string? -

SalesOrder? string? - Sales Order Number

SalesOrderItem? string? -

DeliveryDocument? string? -

DeliveryDocumentItem? string? -

DeliveryCategory? string? - Delivery Category

InspectionDeliveryCategory? string? - Delivery Category

Route? string? -

BillToPartyCountry? string? - Destination Country/Region

SoldToParty? string? -

SalesOrganization? string? -

MaterialByCustomer? string? -

Language? string? -

InspLotNmbrAddlRecordedCharc? int? - Number of Characteristics Recorded Additionally

InspLotNmbrOpenShortTermCharc? int? - Number of Outstanding Short-Term Chars That Require Confirm.

InspectionLotContainer? string? - QM - No. of Containers

InspectionLotContainerUnit? string? -

InspectionLotSampleQuantity? string? - Inspection Sample Size

InspectionLotSampleUnit? string? -

InspLotDynamicRule? string? -

InspLotDynamicTrggrPoint? string? - Time of Dynamic Modification in Inspection Lot

InspectionDynamicStage? string? -

InspectionSeverity? string? -

InspLotQtyToFree? string? -

InspLotQtyToScrap? string? -

InspLotQtyToSample? string? - Quantity Posted to Sample

InspLotQtyToBlocked? string? -

InspLotQtyToReserves? string? - Quantity Posted to Reserves

InspLotQtyToAnotherMaterial? string? -

InspLotMaterialPostedTo? string? -

InspLotBatchTransferredTo? string? -

InspLotQtyReturnedToSupplier? string? -

InspLotQtyToSpecialStock? string? -

InspLotQtyToOtherStock? string? -

InspLotQtyToBePosted? string? -

InspLotSmplQtyForLongTermChar? string? -

InspLotQtyInspected? string? -

InspLotQtyDestroyed? string? -

InspectionLotScrapRatio? decimal|string? - Share of Scrap in Inspection Lot

InspLotUsageDecisionTool? string? - Usage Decision Mode (UD Origin)

InspectionLotAllowedScrapRatio? decimal|string? - Allowed Share of Scrap

QualityCostCollector? string? - Order Number for Recording Appraisal Costs

ConsumptionPosting? string? - Consumption posting

AccountAssignmentCategory? string? - Account Assignment Category

PurchasingDocumentItemCategory? string? - Item category in purchasing document

InspLotAcctAssgmtKey? string? - Account Assignment Key: Inspection Lot

CostCenter? string? -

ReservationItem? string? - Item Number of Reservation / Dependent Requirements

MasterFixedAsset? string? - Main Asset Number

FixedAsset? string? - Asset Subnumber

SalesOrdStockWBSElement? string? - Valuated Sales Order Stock WBS Element

ProjectNetwork? string? - Network Number for Account Assignment

NetworkActivityInternalID? string? - Internal counter

InventorySpclStkSalesDocument? string? -

InventorySpclStkSalesDocItm? string? - Sales Order Item of Valuated Sales Order Stock

ProfitabilitySegment? string? -

ProfitCenter? string? -

BusinessArea? string? -

GLAccount? string? - G/L Account Number

ControllingArea? string? -

CompanyCode? string? -

SerialNumberProfile? string? - Serial Number Profile

InspLotCostCollectorSalesOrder? string? - Sales Order Number

InspLotCostCollectorSlsOrdItem? string? - Item Number in Sales Order

InspLotCostCollectorWBSElement? string? - Work Breakdown Structure Element (WBS Element)

InspLotExternalNumber? string? -

InspectionLotPriorityPoints? Signed32? -

MaintenancePlan? string? -

MaintenancePlanItemIntID? string? -

MaintenanceStrategy? string? -

to_InspectionLotWithStatus? A_InspectionLotWithStatus -

sap.s4hana.api_inspectionlot_srv: A_InspectionLotWithStatus

Fields

InspectionLot? string - Inspection Lot Number

InspectionLotStatusCreated? string? -

InspectionLotStatusReleased? string? -

InspectionLotStatusSkip? string? -

InspLotStatusRsltsConfirmed? string? -

InspLotStsDefectsRecorded? string? -

InspLotStsShrtTrmInspCmpltd? string? -

InspLotStatusInspCompleted? string? -

InspLotStatusCanceled? string? -

InspLotStatusRepair? string? -

sap.s4hana.api_inspectionlot_srv: A_InspectionLotWithStatusWrapper

Fields

d? A_InspectionLotWithStatus -

sap.s4hana.api_inspectionlot_srv: A_InspectionLotWrapper

Fields

d? A_InspectionLot -

sap.s4hana.api_inspectionlot_srv: A_InspectionOperation

Fields

InspectionLot? string - Inspection Lot Number

InspPlanOperationInternalID? string - Current Node Number from Order Counter

OrderInternalBillOfOperations? string? - Routing number of operations in the order

InspectionOperation? string? - Activity Number

InspectionOperationPlant? string? -

BillOfOperationsType? string? -

BOOOperationInternalID? string? - Number of the Task List Node

WorkCenterInternalID? string? - Object ID of the resource

StatusObject? string? -

OperationControlProfile? string? -

OperationConfirmation? string? - Completion confirmation number for the operation

InspectionSubSystem? string? - Subsystem Identifier for QM Subsystem Interface

OperationText? string? -

sap.s4hana.api_inspectionlot_srv: A_InspectionOperationWrapper

Fields

d? A_InspectionOperation -

sap.s4hana.api_inspectionlot_srv: A_InspectionResult

Fields

InspectionLot? string - Inspection Lot Number

InspPlanOperationInternalID? string - Current Node Number from Order Counter

InspectionCharacteristic? string - Inspection Characteristic Number

InspectionResultStatus? string? - Results Record Status

InspectionResultAttribute? string? - Attribute of Results Record (Valid, Invalid,...)

InspectionResultOrigin? string? - Origin of Results Data

Inspector? string? - Name of Inspector

InspectionValuationResult? string? - Inspection Result Valuation

InspectionResultMeanValue? decimal|string? - Arithmetic Mean of Valid Measured Values

InspResultFrmtdMeanValue? string? - Arithmetic Mean of Valid Measured Values (Formatted)

InspectionResultHasMeanValue? string? - Value Not Initial If Set

InspectionResultMaximumValue? decimal|string? - Maximum Value of Valid Measured Values

InspResultFrmtdMaximumValue? string? - Maximum Value of Valid Measured Values - formatted

InspResultHasMaximumValue? string? - Value Not Initial If Set

InspectionResultMinimumValue? decimal|string? - Minimum Value of Valid Measured Values

InspResultFrmtdMinimumValue? string? - Minimum Value of Valid Measured Values (Formatted)

InspResultHasMinimumValue? string? - Value Not Initial If Set

InspectionResultOriginalValue? string? - Original Value Before Input Processing

InspResultValidValuesNumber? Signed32? - Number of Inspected Sample Units

InspectionResultText? string? - Inspection Description for Summarized Result

InspectionResultHasLongText? string? - Inspection Characteristic Long Text Exists

CharacteristicAttributeCatalog? string? - Catalog Type of Assigned Code Group or Selected Set

CharacteristicAttributeCodeGrp? string? -

CharacteristicAttributeCode? string? -

InspRsltFreeDefinedTestEquip? string? - General Information

InspRsltBelowToleranceValsNmbr? Signed32? - Number of Measured Values Below Tolerance Range

InspRsltAboveToleranceValsNmbr? Signed32? - Number of Measured Values Above Tolerance Range

InspRsltNonconformingValsNmbr? Signed32? - Number of Nonconforming Sample Units

InspectionNumberOfDefects? Signed32? - Number of Defects Found

DefectClass? string? -

InspRsltAboveToleranceFraction? decimal|string? - Estimated Fraction Above Tolerance Range

InspRsltFrmtdAbvTolFraction? string? - Estimated Fraction Above Tolerance Range (Formatted)

InspRsltBelowToleranceFraction? decimal|string? - Estimated Fraction Below Tolerance Range

InspRsltFrmtdBelowTolFraction? string? - Estimated Fraction Below Tolerance Range (Formatted)

InspResultVariance? decimal|string? - Dispersion (Variance) of Valid Measured Values

InspResultFrmtdVariance? string? - Dispersion (Variance) of Valid Measured Values (Formatted)

InspectionResultCatalog2? string? - Catalog Type of Assigned Code Group or Selected Set

InspectionResultCatalog3? string? - Catalog Type of Assigned Code Group or Selected Set

InspectionResultCatalog4? string? - Catalog Type of Assigned Code Group or Selected Set

InspectionResultCatalog5? string? - Catalog Type of Assigned Code Group or Selected Set

InspectionResultCode2? string? -

InspectionResultCode3? string? -

InspectionResultCode4? string? -

InspectionResultCode5? string? -

InspectionResultCodeGroup2? string? -

InspectionResultCodeGroup3? string? -

InspectionResultCodeGroup4? string? -

InspectionResultCodeGroup5? string? -

InspectionPartialSampleSize? int? - Number of Partial Samples for Characteristic

InspectionStartDate? string? - Start Date in Local Time Zone of Inspection

InspectionStartTime? string? - Start Time in Local Time Zone of Inspection

InspectionEndDate? string? -

InspectionEndTime? string? - End Time in Local Time Zone of Inspection

CreatedByUser? string? - Name of User Who Created the Data Record

CreationDate? string? - System Date on Which Data Record Was Created

LastChangedByUser? string? - Name of User Who Last Changed Data Record

LastChangeDate? string? - System Date on Which Data Record Was Changed

ChangedDateTime? string? - UTC Time Stamp in Short Form (YYYYMMDDhhmmss)

sap.s4hana.api_inspectionlot_srv: A_InspectionResultValue

Fields

InspectionLot? string - Inspection Lot Number

InspPlanOperationInternalID? string - Current Node Number from Order Counter

InspectionCharacteristic? string - Inspection Characteristic Number

InspResultValueInternalID? string - Number of Individual Result

InspectionResultAttribute? string? - Attribute of Results Record (Valid, Invalid,...)

InspResultItemInternalID? string? - Counter for Inspection Unit Number

InspectionSubsetInternalID? string? - Inspection Sample Number

InspectionResultMeasuredValue? decimal|string? - Measured Value for a Sample Unit

InspResultFrmtdMeasuredValue? string? - Measured Value for a Sample Unit - formatted

InspResultHasMeasuredValue? string? - Measured Value Is Not Initial

InspectionResultOriginalValue? string? - Original Value Before Input Processing

InspectionNumberOfDefects? int? - Number of Defects Found

DefectClass? string? -

InspectionResultText? string? -

InspLotSingleUnitNumber? string? - Number of Single Unit in Inspection Lot

InspectionResultItem? string? - Single-Unit Number for the Unit to Be Inspected

InspRsltFreeDefinedTestEquip? string? - General Information

InspectionValuationResult? string? - Inspection Result Valuation

CharacteristicAttributeCodeGrp? string? -

InspectionResultCodeGroup2? string? -

InspectionResultCodeGroup3? string? -

InspectionResultCodeGroup4? string? -

InspectionResultCodeGroup5? string? -

CharacteristicAttributeCode? string? -

InspectionResultCode2? string? -

InspectionResultCode3? string? -

InspectionResultCode4? string? -

InspectionResultCode5? string? -

CharacteristicAttributeCatalog? string? -

InspectionResultCatalog2? string? -

InspectionResultCatalog3? string? -

InspectionResultCatalog4? string? -

InspectionResultCatalog5? string? -

Inspector? string? - Name of Inspector

InspectionStartDate? string? - Start Date in Local Time Zone of Inspection

InspectionStartTime? string? - Start Time in Local Time Zone of Inspection

InspectionEndDate? string? - End Date in Local Time Zone of Inspection

InspectionEndTime? string? - End Time in Local Time Zone of Inspection

CreationDate? string? - System Date on Which Data Record Was Created

CreationTime? string? - System Time at Which Data Record Was Created

CreatedByUser? string? - Name of User Who Created the Data Record

LastChangeDate? string? - System Date on Which Data Record Was Changed

ChangedTime? string? - System Time at Which Data Record Was Changed

LastChangedByUser? string? - Name of User Who Last Changed Data Record

ChangedDateTime? string? - UTC Time Stamp in Short Form (YYYYMMDDhhmmss)

sap.s4hana.api_inspectionlot_srv: A_InspectionResultValueWrapper

Fields

d? A_InspectionResultValue -

sap.s4hana.api_inspectionlot_srv: A_InspectionResultWrapper

Fields

d? A_InspectionResult -

sap.s4hana.api_inspectionlot_srv: A_InspectionSubset

Fields

Trigger_valuation_ac? boolean? -

InspectionLot? string - Inspection Lot Number

InspPlanOperationInternalID? string - Current Node Number from Order Counter

InspectionSubsetInternalID? string - Sample Number (Based on an Inspection Point)

MaterialSample? string? - Material Sample Number

Equipment? string? - Equipment Number

FunctionalLocation? string? -

ShopFloorItem? string? - ID of Serialized Material

SelectedCodeSetPlant? string? -

SelectedCodeSet? string? - Selected Set of the Usage Decision

InspSubsetUsageDcsnCodeGroup? string? - Code Group of the Usage Decision

InspSubsetUsageDcsnCode? string? -

InspSubsetUsageDcsnValuation? string? -

InspectionSubsetTime? string? -

InspectionSubsetDate? string? -

InspSubsetLongNumericKey? string? -

InspSubsetShortNumericKey? string? -

InspectionSubsetLongCharKey? string? -

InspectionSubsetShortCharKey? string? -

InspectionPartialLot? string? - Partial Lot Number

Inspector? string? - Name of Inspector

InspectionSubsetYieldQty? string? - Inspection Point Yield

InspectionSubsetScrapQty? string? - Scrap for Inspection Point

InspectionSubsetReworkQty? string? - Rework Quantity for Inspection Point

InspectionSubsetQtyUnit? string? - Unit of Measure for Inspection Point

InspSbstFuncnlLocProperty? string? - Field Active

InspSbstEquipProperty? string? - Field Active

InspSbstMatlSmplProperty? string? - Field Active

InspectionSubsetSortKey? string? - Key Field (Sort Field) for Inspection Point

InspSbstDateFldProperty? string? - Field Active

InspSbstLongNmbrFldProperty? string? - Field Active

InspSbstShrtNmbrFldProperty? string? - Field Active

InspSbstLongTxtFldProperty? string? - Field Active

InspSbstTimeFldProperty? string? - Field Active

InspSbstShrtTxtFldProperty? string? - Field Active

CreatedByUser? string? - Name of Person Responsible for Creating the Object

CreationDate? string? - System Date on Which Data Record Was Created

CreationTime? string? - System Time at Which Data Record Was Created

LastChangedByUser? string? - Name of Person Who Changed Object

LastChangeDate? string? - System Date on Which Data Record Was Changed

LastChangeTime? string? - System Time at Which Data Record Was Changed

ChangedDateTime? string? - UTC Time Stamp in Short Form (YYYYMMDDhhmmss)

sap.s4hana.api_inspectionlot_srv: A_InspectionSubsetWrapper

Fields

d? A_InspectionSubset -

sap.s4hana.api_inspectionlot_srv: A_InspLotMatlDocItem

Fields

InspectionLot? string - Inspection Lot Number

InspLotMatlDocItem? string - Internal Counter for DB Objects

InspLotQtyPosted? string? - Quantity in unit of entry

InspLotMatlDocItmQtyUnit? string? - Unit of entry

UsageDecisionStockType? string? - Posting Proposal in Usage Decision

StorageLocation? string? -

InspLotMaterialPostedTo? string? -

InspLotBatchTransferredTo? string? -

MaterialDocumentItemText? string? - Item Text

InspLotMatlDocItemType? string? - Type of Reference Between Inspection Lot and Material Doc.

MaterialDocument? string? - Number of Material Document

MaterialDocumentYear? string? - Material Document Year

MaterialDocumentItem? string? - Item in Material Document

CreationDate? string? - Day On Which Accounting Document Was Entered

ChangedDateTime? string? - UTC Time Stamp in Short Form (YYYYMMDDhhmmss)

to_InspLotMatlDocItmSrlNmbr? A_InspLotMatlDocItem_to_InspLotMatlDocItmSrlNmbr -

sap.s4hana.api_inspectionlot_srv: A_InspLotMatlDocItem_to_InspLotMatlDocItmSrlNmbr

Fields

results? A_InspLotMatlDocItmSrlNmbr[] -

sap.s4hana.api_inspectionlot_srv: A_InspLotMatlDocItemWrapper

Fields

d? A_InspLotMatlDocItem -

sap.s4hana.api_inspectionlot_srv: A_InspLotMatlDocItmSrlNmbr

Fields

InspectionLot? string - Inspection Lot Number

InspLotMatlDocItem? string - Internal Counter for DB Objects

Equipment? string - Equipment Number

SerialNumber? string? -

InspLotMatlDocItemType? string? - Type of Reference Between Inspection Lot and Material Doc.

sap.s4hana.api_inspectionlot_srv: A_InspLotMatlDocItmSrlNmbrWrapper

Fields

d? A_InspLotMatlDocItmSrlNmbr -

sap.s4hana.api_inspectionlot_srv: A_InspLotSerialNumber

Fields

InspectionLot? string - Inspection Lot Number

SerialNumber? string -

sap.s4hana.api_inspectionlot_srv: A_InspLotSerialNumberWrapper

Fields

d? A_InspLotSerialNumber -

sap.s4hana.api_inspectionlot_srv: A_InspLotUsageDecision

Fields

InspectionLot? string - Inspection Lot Number

InspLotUsageDecisionLevel? string? - Inspection Lot, Partial Lot, Single Unit, Interval

InspectionLotQualityScore? string? -

InspLotUsageDecisionCatalog? string? -

SelectedCodeSetPlant? string? -

InspLotUsgeDcsnSelectedSet? string? - Selected Set of the Usage Decision

InspLotUsageDecisionCodeGroup? string? -

InspectionLotUsageDecisionCode? string? -

InspLotUsgeDcsnDynValuation? string? - Dynamic Modif. Valuation According to Worst Case Principle

InspLotUsageDecisionValuation? string? -

InspLotUsgeDcsnFollowUpAction? string? -

InspectionLotUsageDecidedBy? string? -

InspectionLotUsageDecidedOn? string? - Date When Usage Decision Was Made

InspLotUsageDecisionTime? string? - Time When Usage Decision Was Made

InspLotUsageDecisionChangedBy? string? -

InspLotUsageDecisionChangedOn? string? - Date When Usage Decision Was Changed

InspLotUsgeDcsnChangedTime? string? - Time When Usage Decision Was Changed

InspLotUsgeDcsnHasLongText? boolean? -

ChangedDateTime? string? - UTC Time Stamp in Short Form (YYYYMMDDhhmmss)

sap.s4hana.api_inspectionlot_srv: A_InspLotUsageDecisionWrapper

Fields

d? A_InspLotUsageDecision -

sap.s4hana.api_inspectionlot_srv: A_InspSampleCharacteristic

Fields

InspectionLot? string - Inspection Lot Number

InspPlanOperationInternalID? string - Current Node Number from Order Counter

InspectionCharacteristic? string - Inspection Characteristic Number

InspectionSubsetInternalID? string - Inspection Sample Number

InspectionCharacteristicStatus? string? - Specification Record Status

QualityControlChart? string? - Control Chart Number

InspSampleAcceptanceNumber? int? -

InspSampleRejectionNumber? int? - Rejection Number

InspSampleValuationRule? string? - Valuation Rule

InspectionSampleSize? Signed32? - Sample Size that Must Be Inspected

InspLotDynRuleStage? string? -

InspectionSeverity? string? -

InspSubsetCharcCreationDate? string? - System Date on Which Data Record Was Created

ChangedDateTime? string? - UTC Time Stamp in Short Form (YYYYMMDDhhmmss)

sap.s4hana.api_inspectionlot_srv: A_InspSampleCharacteristicWrapper

Fields

d? A_InspSampleCharacteristic -

sap.s4hana.api_inspectionlot_srv: A_InspSampleResult

Fields

InspectionLot? string - Inspection Lot Number

InspPlanOperationInternalID? string - Current Node Number from Order Counter

InspectionCharacteristic? string - Inspection Characteristic Number

InspectionSubsetInternalID? string - Number of Partial Sample

Inspector? string? - Name of Inspector

InspectionResultStatus? string? - Results Record Status

InspectionResultOrigin? string? - Origin of Results Data

InspectionStartDate? string? - Start Date in Local Time Zone of Inspection

InspectionStartTime? string? - Start Time in Local Time Zone of Inspection

InspectionEndDate? string? - End Date in Local Time Zone of Inspection

InspectionEndTime? string? - End Time in Local Time Zone of Inspection

InspectionResultAttribute? string? - Attribute of Results Record (Valid, Invalid,...)

InspectionValuationResult? string? - Inspection Result Valuation

InspResultFrmtdMeanValue? string? - Arithmetic Mean of Valid Measured Values (Formatted)

InspectionResultHasMeanValue? string? - Value Not Initial If Set

InspResultFrmtdMaximumValue? string? - Maximum Value of Valid Measured Values - formatted

InspResultHasMaximumValue? string? - Value Not Initial If Set

InspResultFrmtdMinimumValue? string? - Minimum Value of Valid Measured Values (Formatted)

InspResultHasMinimumValue? string? - Value Not Initial If Set

InspectionResultOriginalValue? string? - Original Value Before Input Processing

InspResultValidValuesNumber? int? - Number of Inspected Sample Units

InspResultNmbrOfRecordedRslts? Signed32? - Number of Recorded Sample Units

InspectionResultText? string? -

InspectionResultHasLongText? string? - Inspection Characteristic Long Text Exists

Language? string? -

InspRsltFreeDefinedTestEquip? string? - General Information

InspRsltBelowToleranceValsNmbr? int? - Number of Measured Values Below Tolerance Range

InspRsltAboveToleranceValsNmbr? int? - Number of Measured Values Above Tolerance Range

InspRsltFrmtdAbvTolFraction? string? - Estimated Fraction Above Tolerance Range (Formatted)

InspRsltFrmtdBelowTolFraction? string? - Estimated Fraction Below Tolerance Range (Formatted)

InspResultFrmtdVariance? string? - Dispersion (Variance) of Valid Measured Values (Formatted)

InspRsltNonconformingValsNmbr? int? - Number of Nonconforming Sample Units

InspectionNumberOfDefects? int? - Number of Defects Found

CharacteristicAttributeCodeGrp? string? -

InspectionResultCodeGroup2? string? -

InspectionResultCodeGroup3? string? -

InspectionResultCodeGroup4? string? -

InspectionResultCodeGroup5? string? -

CharacteristicAttributeCode? string? -

InspectionResultCode2? string? -

InspectionResultCode3? string? -

InspectionResultCode4? string? -

InspectionResultCode5? string? -

CharacteristicAttributeCatalog? string? - Catalog Type of Assigned Code Group or Selected Set

InspectionResultCatalog2? string? - Catalog Type of Assigned Code Group or Selected Set

InspectionResultCatalog3? string? - Catalog Type of Assigned Code Group or Selected Set

InspectionResultCatalog4? string? - Catalog Type of Assigned Code Group or Selected Set

InspectionResultCatalog5? string? - Catalog Type of Assigned Code Group or Selected Set

CreatedByUser? string? - Name of User Who Created the Data Record

CreationDate? string? - System Date on Which Data Record Was Created

CreationTime? string? - System Time at Which Data Record Was Created

LastChangedByUser? string? - Name of User Who Last Changed Data Record

LastChangeDate? string? - System Date on Which Data Record Was Changed

ChangedDateTime? string? - UTC Time Stamp in Short Form (YYYYMMDDhhmmss)

ChangedTime? string? - System Time at Which Data Record Was Changed

sap.s4hana.api_inspectionlot_srv: A_InspSampleResultWrapper

Fields

d? A_InspSampleResult -

sap.s4hana.api_inspectionlot_srv: CollectionOfA_InspectionCharacteristic

Fields

__count? count -

results? A_InspectionCharacteristic[] -

sap.s4hana.api_inspectionlot_srv: CollectionOfA_InspectionCharacteristicWrapper

Fields

d? CollectionOfA_InspectionCharacteristic -

sap.s4hana.api_inspectionlot_srv: CollectionOfA_InspectionLot

Fields

__count? count -

results? A_InspectionLot[] -

sap.s4hana.api_inspectionlot_srv: CollectionOfA_InspectionLotWithStatus

Fields

__count? count -

results? A_InspectionLotWithStatus[] -

sap.s4hana.api_inspectionlot_srv: CollectionOfA_InspectionLotWithStatusWrapper

Fields

d? CollectionOfA_InspectionLotWithStatus -

sap.s4hana.api_inspectionlot_srv: CollectionOfA_InspectionLotWrapper

Fields

d? CollectionOfA_InspectionLot -

sap.s4hana.api_inspectionlot_srv: CollectionOfA_InspectionOperation

Fields

__count? count -

results? A_InspectionOperation[] -

sap.s4hana.api_inspectionlot_srv: CollectionOfA_InspectionOperationWrapper

Fields

d? CollectionOfA_InspectionOperation -

sap.s4hana.api_inspectionlot_srv: CollectionOfA_InspectionResult

Fields

__count? count -

results? A_InspectionResult[] -

sap.s4hana.api_inspectionlot_srv: CollectionOfA_InspectionResultValue

Fields

__count? count -

results? A_InspectionResultValue[] -

sap.s4hana.api_inspectionlot_srv: CollectionOfA_InspectionResultValueWrapper

Fields

d? CollectionOfA_InspectionResultValue -

sap.s4hana.api_inspectionlot_srv: CollectionOfA_InspectionResultWrapper

Fields

d? CollectionOfA_InspectionResult -

sap.s4hana.api_inspectionlot_srv: CollectionOfA_InspectionSubset

Fields

__count? count -

results? A_InspectionSubset[] -

sap.s4hana.api_inspectionlot_srv: CollectionOfA_InspectionSubsetWrapper

Fields

d? CollectionOfA_InspectionSubset -

sap.s4hana.api_inspectionlot_srv: CollectionOfA_InspLotMatlDocItem

Fields

__count? count -

results? A_InspLotMatlDocItem[] -

sap.s4hana.api_inspectionlot_srv: CollectionOfA_InspLotMatlDocItemWrapper

Fields

d? CollectionOfA_InspLotMatlDocItem -

sap.s4hana.api_inspectionlot_srv: CollectionOfA_InspLotMatlDocItmSrlNmbr

Fields

__count? count -

results? A_InspLotMatlDocItmSrlNmbr[] -

sap.s4hana.api_inspectionlot_srv: CollectionOfA_InspLotMatlDocItmSrlNmbrWrapper

Fields

d? CollectionOfA_InspLotMatlDocItmSrlNmbr -

sap.s4hana.api_inspectionlot_srv: CollectionOfA_InspLotSerialNumber

Fields

__count? count -

results? A_InspLotSerialNumber[] -

sap.s4hana.api_inspectionlot_srv: CollectionOfA_InspLotSerialNumberWrapper

Fields

d? CollectionOfA_InspLotSerialNumber -

sap.s4hana.api_inspectionlot_srv: CollectionOfA_InspLotUsageDecision

Fields

__count? count -

results? A_InspLotUsageDecision[] -

sap.s4hana.api_inspectionlot_srv: CollectionOfA_InspLotUsageDecisionWrapper

Fields

d? CollectionOfA_InspLotUsageDecision -

sap.s4hana.api_inspectionlot_srv: CollectionOfA_InspSampleCharacteristic

Fields

__count? count -

results? A_InspSampleCharacteristic[] -

sap.s4hana.api_inspectionlot_srv: CollectionOfA_InspSampleCharacteristicWrapper

Fields

d? CollectionOfA_InspSampleCharacteristic -

sap.s4hana.api_inspectionlot_srv: CollectionOfA_InspSampleResult

Fields

__count? count -

results? A_InspSampleResult[] -

sap.s4hana.api_inspectionlot_srv: CollectionOfA_InspSampleResultWrapper

Fields

d? CollectionOfA_InspSampleResult -

sap.s4hana.api_inspectionlot_srv: ConnectionConfig

Closed record

Provides a set of configurations for controlling the behaviours when communicating with a remote HTTP endpoint.

Fields

auth BearerTokenConfig|OAuth2RefreshTokenGrantConfig|CredentialsConfig - Configurations related to client authentication

httpVersion HttpVersion(default http:HTTP_2_0) - The HTTP version understood by the client

http1Settings ClientHttp1Settings(default {}) - Configurations related to HTTP/1.x protocol

http2Settings ClientHttp2Settings(default {}) - Configurations related to HTTP/2 protocol

timeout decimal(default 60) - The maximum time to wait (in seconds) for a response before closing the connection

forwarded string(default "disable") - The choice of setting forwarded/x-forwarded header

followRedirects? FollowRedirects - Configurations associated with Redirection

poolConfig? PoolConfiguration - Configurations associated with request pooling

cache CacheConfig(default {}) - HTTP caching related configurations

compression Compression(default http:COMPRESSION_AUTO) - Specifies the way of handling compression (accept-encoding) header

circuitBreaker? CircuitBreakerConfig - Configurations associated with the behaviour of the Circuit Breaker

retryConfig? RetryConfig - Configurations associated with retrying

cookieConfig? CookieConfig - Configurations associated with cookies

responseLimits ResponseLimitConfigs(default {}) - Configurations associated with inbound response size limits

secureSocket? ClientSecureSocket - SSL/TLS-related options

proxy? ProxyConfig - Proxy server related options

socketConfig ClientSocketConfig(default {}) - Provides settings related to client socket configuration

validation boolean(default true) - Enables the inbound payload validation functionality which provided by the constraint package. Enabled by default

laxDataBinding boolean(default true) - Enables relaxed data binding on the client side. When enabled, nil values are treated as optional, and absent fields are handled as nilable types. Enabled by default.

sap.s4hana.api_inspectionlot_srv: CreateA_InspectionLot

Fields

InspectionLot string - Inspection Lot Number

Material? string? - Material Number

Batch? string? - Batch Number

Plant? string? -

InspectionLotOrigin? string? -

OrderInternalBillOfOperations? string? - Routing number of operations in the order

ManufacturingOrder? string? - Order Number (Production Order)

InspectionLotText? string? -

InspectionLotType? string? -

InspectionLotQuantity? string? -

InspectionLotActualQuantity? string? -

InspectionLotDefectiveQuantity? string? -

InspectionLotQuantityUnit? string? - Base Unit of Measure for Inspection Lot Quantity

InspLotCreatedOnLocalDate? string? - Date in Time Zone Where Lot Created

InspSubsetFieldCombination? string? - Identifier for Inspection Point Field Combination

InspLotNmbrOpenLongTermCharc? int? -

StatusObject? string? -

StatusObjectCategory? string? -

InspectionLotObjectText? string? - Short Text for Inspection Object

StatusProfile? string? -

MatlQualityAuthorizationGroup? string? - Material Authorization Group for Activities in QM

InspectionLotHasQuantity? boolean? -

InspLotIsCreatedAutomatically? boolean? - Inspection Lot Is Created Automatically

InspectionLotHasPartialLots? boolean? -

InspectionLotHasAppraisalCosts? boolean? - Record Appraisal Costs in Individual QM Order

InspLotHasSubsets? boolean? - Inspection with Inspection Points

InspLotIsAutomUsgeDcsnPossible? boolean? -

PurchasingDocumentCategory? string? - Source Inspection

InspLotHasConfignSpecification? boolean? - Inspection Specifications from Configuration

GoodsReceiptIsMovedToBlkdStock? string? -

InspLotIsDocumentationRequired? boolean? -

InspLotIsTaskListRequired? boolean? -

InspLotHasManualSampleSize? boolean? - Enter Sample Manually

InspLotHasMaterialSpec? boolean? -

InspectionLotApproval? string? -

InspLotDigitalSgntrResultsRecg? string? - Digital Signature for Insp. Lot in Results Recording

InspLotDigitalSgntrInUsgeDcsn? string? -

InspLotIsBatchRequired? boolean? - Approved Batch Record Required

InspLotUsageInStabilityStudy? string? - Inspection Lot for Stability Study

InspLotIsStockPostingCompleted? boolean? -

InspectionLotHasUsageDecision? boolean? -

NumberOfSerialNumbers? Signed32? - Number of serial numbers

InspLotIsSerialNmbrPossible? boolean? - Serial Numbers Possible for Inspection Lot

InspectionLotIsSkipped? boolean? -

InspectionLotIsFullInspection? boolean? -

InspectionLotDynamicLevel? string? - Level at Which Dynamic Modification Parameters Are Defined

SamplingProcedure? string? -

InspLotCreatedOnLocalTime? string? - Time in Time Zone Where Lot Created

InspectionLotCreatedBy? string? - Name of User Who Created the Data Record

InspectionLotCreatedOn? string? - System Date on Which Data Record Was Created

InspectionLotCreatedOnTime? string? - System Time of Creation

InspectionLotChangedBy? string? - Name of User Who Last Changed Data Record

InspectionLotChangeDate? string? - System Date on Which Data Record Was Changed

InspectionLotChangeTime? string? - System Time of Change

ChangedDateTime? string? - UTC Time Stamp in Short Form (YYYYMMDDhhmmss)

InspectionLotStartDate? string? - Start Date of Inspection in Local Time Zone

InspectionLotStartTime? string? -

InspectionLotEndDate? string? - End Date of Inspection in Local Time Zone

InspectionLotEndTime? string? -

BillOfOperationsType? string? -

BillOfOperationsGroup? string? -

BillOfOperationsUsage? string? -

BillOfOperationsVariant? string? -

BillOfOperationsChangeStateID? string? - Internal counter

InspectionSubsetType? string? -

SmplDrawingProcedure? string? -

SmplDrawingProcedureVersion? string? - Version No. of the Sample-Drawing Procedure

SmplDrwgProcedIsConfRequired? boolean? - Confirmation Required for Sample Drawing

InspLotSelectionMaterial? string? - Material Number

InspLotSelMatlRevisionLvl? string? -

InspLotSelectionPlant? string? -

InspLotSelectionSupplier? string? - Supplier's Account Number

InspLotSelectionManufacturer? string? - Number of Manufacturer

InspLotSelectionCustomer? string? - Account number of customer

InspLotSelBillOfOperationsUsge? string? - Task List Usage

InspLotSelectionValidFromDate? string? - Key Date for Selecting Records or Changing Task Lists

ProductionVersion? string? -

SalesOperationsPlanningOrder? string? -

IsBusinessPurposeCompleted? string? - Business Purpose Completed Flag

Customer? string? -

Supplier? string? - Supplier's Account Number

BatchBySupplier? string? - Supplier Batch Number

Manufacturer? string? - Number of Manufacturer

ManufacturerPartNmbr? string? -

MaterialRevisionLevel? string? -

MaterialIsBatchManaged? boolean? -

BatchStorageLocation? string? -

MaterialCompIsSpecialStock? string? - Special Stock Indicator

PurchasingOrganization? string? -

PurchasingDocument? string? -

PurchasingDocumentItem? string? -

ScheduleLine? string? - Delivery Schedule Line Counter

AccountingDocumentType? string? -

MaterialDocumentYear? string? -

MaterialDocument? string? - Number of Material Document

MaterialDocumentItem? string? -

MatlDocLatestPostgDate? string? - Posting Date in the Document

GoodsMovementType? string? - Movement Type (Inventory Management)

InspectionLotPlant? string? -

InspectionLotStorageLocation? string? - Storage Location for Inspection Lot Stock

Warehouse? string? - Warehouse Number / Warehouse Complex

StorageType? string? -

StorageBin? string? -

SalesOrder? string? - Sales Order Number

SalesOrderItem? string? -

DeliveryDocument? string? -

DeliveryDocumentItem? string? -

DeliveryCategory? string? - Delivery Category

InspectionDeliveryCategory? string? - Delivery Category

Route? string? -

BillToPartyCountry? string? - Destination Country/Region

SoldToParty? string? -

SalesOrganization? string? -

MaterialByCustomer? string? -

Language? string? -

InspLotNmbrAddlRecordedCharc? int? - Number of Characteristics Recorded Additionally

InspLotNmbrOpenShortTermCharc? int? - Number of Outstanding Short-Term Chars That Require Confirm.

InspectionLotContainer? string? - QM - No. of Containers

InspectionLotContainerUnit? string? -

InspectionLotSampleQuantity? string? - Inspection Sample Size

InspectionLotSampleUnit? string? -

InspLotDynamicRule? string? -

InspLotDynamicTrggrPoint? string? - Time of Dynamic Modification in Inspection Lot

InspectionDynamicStage? string? -

InspectionSeverity? string? -

InspLotQtyToFree? string? -

InspLotQtyToScrap? string? -

InspLotQtyToSample? string? - Quantity Posted to Sample

InspLotQtyToBlocked? string? -

InspLotQtyToReserves? string? - Quantity Posted to Reserves

InspLotQtyToAnotherMaterial? string? -

InspLotMaterialPostedTo? string? -

InspLotBatchTransferredTo? string? -

InspLotQtyReturnedToSupplier? string? -

InspLotQtyToSpecialStock? string? -

InspLotQtyToOtherStock? string? -

InspLotQtyToBePosted? string? -

InspLotSmplQtyForLongTermChar? string? -

InspLotQtyInspected? string? -

InspLotQtyDestroyed? string? -

InspectionLotScrapRatio? decimal|string? - Share of Scrap in Inspection Lot

InspLotUsageDecisionTool? string? - Usage Decision Mode (UD Origin)

InspectionLotAllowedScrapRatio? decimal|string? - Allowed Share of Scrap

QualityCostCollector? string? - Order Number for Recording Appraisal Costs

ConsumptionPosting? string? - Consumption posting

AccountAssignmentCategory? string? - Account Assignment Category

PurchasingDocumentItemCategory? string? - Item category in purchasing document

InspLotAcctAssgmtKey? string? - Account Assignment Key: Inspection Lot

CostCenter? string? -

ReservationItem? string? - Item Number of Reservation / Dependent Requirements

MasterFixedAsset? string? - Main Asset Number

FixedAsset? string? - Asset Subnumber

SalesOrdStockWBSElement? string? - Valuated Sales Order Stock WBS Element

ProjectNetwork? string? - Network Number for Account Assignment

NetworkActivityInternalID? string? - Internal counter

InventorySpclStkSalesDocument? string? -

InventorySpclStkSalesDocItm? string? - Sales Order Item of Valuated Sales Order Stock

ProfitabilitySegment? string? -

ProfitCenter? string? -

BusinessArea? string? -

GLAccount? string? - G/L Account Number

ControllingArea? string? -

CompanyCode? string? -

SerialNumberProfile? string? - Serial Number Profile

InspLotCostCollectorSalesOrder? string? - Sales Order Number

InspLotCostCollectorSlsOrdItem? string? - Item Number in Sales Order

InspLotCostCollectorWBSElement? string? - Work Breakdown Structure Element (WBS Element)

InspLotExternalNumber? string? -

InspectionLotPriorityPoints? Signed32? -

MaintenancePlan? string? -

MaintenancePlanItemIntID? string? -

MaintenanceStrategy? string? -

to_InspectionLotWithStatus? CreateA_InspectionLotWithStatus -

sap.s4hana.api_inspectionlot_srv: CreateA_InspectionLotWithStatus

Fields

InspectionLot string - Inspection Lot Number

InspectionLotStatusCreated? string? -

InspectionLotStatusReleased? string? -

InspectionLotStatusSkip? string? -

InspLotStatusRsltsConfirmed? string? -

InspLotStsDefectsRecorded? string? -

InspLotStsShrtTrmInspCmpltd? string? -

InspLotStatusInspCompleted? string? -

InspLotStatusCanceled? string? -

InspLotStatusRepair? string? -

sap.s4hana.api_inspectionlot_srv: CreateA_InspectionResult

Fields

InspectionLot string - Inspection Lot Number

InspPlanOperationInternalID string - Current Node Number from Order Counter

InspectionCharacteristic string - Inspection Characteristic Number

InspectionResultStatus? string? - Results Record Status

InspectionResultAttribute? string? - Attribute of Results Record (Valid, Invalid,...)

InspectionResultOrigin? string? - Origin of Results Data

Inspector? string? - Name of Inspector

InspectionValuationResult? string? - Inspection Result Valuation

InspResultFrmtdMeanValue? string? - Arithmetic Mean of Valid Measured Values (Formatted)

InspResultFrmtdMaximumValue? string? - Maximum Value of Valid Measured Values - formatted

InspResultFrmtdMinimumValue? string? - Minimum Value of Valid Measured Values (Formatted)

InspectionResultOriginalValue? string? - Original Value Before Input Processing

InspResultValidValuesNumber? Signed32? - Number of Inspected Sample Units

InspectionResultText? string? - Inspection Description for Summarized Result

InspectionResultHasLongText? string? - Inspection Characteristic Long Text Exists

CharacteristicAttributeCatalog? string? - Catalog Type of Assigned Code Group or Selected Set

CharacteristicAttributeCodeGrp? string? -

CharacteristicAttributeCode? string? -

InspRsltFreeDefinedTestEquip? string? - General Information

InspRsltBelowToleranceValsNmbr? Signed32? - Number of Measured Values Below Tolerance Range

InspRsltAboveToleranceValsNmbr? Signed32? - Number of Measured Values Above Tolerance Range

InspRsltNonconformingValsNmbr? Signed32? - Number of Nonconforming Sample Units

InspectionNumberOfDefects? Signed32? - Number of Defects Found

InspResultFrmtdVariance? string? - Dispersion (Variance) of Valid Measured Values (Formatted)

InspectionResultCatalog2? string? - Catalog Type of Assigned Code Group or Selected Set

InspectionResultCatalog3? string? - Catalog Type of Assigned Code Group or Selected Set

InspectionResultCatalog4? string? - Catalog Type of Assigned Code Group or Selected Set

InspectionResultCatalog5? string? - Catalog Type of Assigned Code Group or Selected Set

InspectionResultCode2? string? -

InspectionResultCode3? string? -

InspectionResultCode4? string? -

InspectionResultCode5? string? -

InspectionResultCodeGroup2? string? -

InspectionResultCodeGroup3? string? -

InspectionResultCodeGroup4? string? -

InspectionResultCodeGroup5? string? -

InspectionPartialSampleSize? int? - Number of Partial Samples for Characteristic

InspectionStartDate? string? - Start Date in Local Time Zone of Inspection

InspectionStartTime? string? - Start Time in Local Time Zone of Inspection

InspectionEndDate? string? -

InspectionEndTime? string? - End Time in Local Time Zone of Inspection

sap.s4hana.api_inspectionlot_srv: CreateA_InspectionResultValue

Fields

InspectionLot string - Inspection Lot Number

InspPlanOperationInternalID string - Current Node Number from Order Counter

InspectionCharacteristic string - Inspection Characteristic Number

InspResultValueInternalID string - Number of Individual Result

InspectionResultAttribute? string? - Attribute of Results Record (Valid, Invalid,...)

InspResultItemInternalID? string? - Counter for Inspection Unit Number

InspectionSubsetInternalID? string? - Inspection Sample Number

InspResultFrmtdMeasuredValue? string? - Measured Value for a Sample Unit - formatted

InspectionResultOriginalValue? string? - Original Value Before Input Processing

InspectionNumberOfDefects? int? - Number of Defects Found

InspectionResultText? string? -

InspLotSingleUnitNumber? string? - Number of Single Unit in Inspection Lot

InspectionResultItem? string? - Single-Unit Number for the Unit to Be Inspected

InspRsltFreeDefinedTestEquip? string? - General Information

InspectionValuationResult? string? - Inspection Result Valuation

CharacteristicAttributeCodeGrp? string? -

InspectionResultCodeGroup2? string? -

InspectionResultCodeGroup3? string? -

InspectionResultCodeGroup4? string? -

InspectionResultCodeGroup5? string? -

CharacteristicAttributeCode? string? -

InspectionResultCode2? string? -

InspectionResultCode3? string? -

InspectionResultCode4? string? -

InspectionResultCode5? string? -

Inspector? string? - Name of Inspector

InspectionStartDate? string? - Start Date in Local Time Zone of Inspection

InspectionStartTime? string? - Start Time in Local Time Zone of Inspection

InspectionEndDate? string? - End Date in Local Time Zone of Inspection

InspectionEndTime? string? - End Time in Local Time Zone of Inspection

sap.s4hana.api_inspectionlot_srv: CreateA_InspectionSubset

Fields

InspectionLot string - Inspection Lot Number

InspPlanOperationInternalID string - Current Node Number from Order Counter

InspectionSubsetInternalID string - Sample Number (Based on an Inspection Point)

MaterialSample? string? - Material Sample Number

Equipment? string? - Equipment Number

FunctionalLocation? string? -

ShopFloorItem? string? - ID of Serialized Material

SelectedCodeSetPlant? string? -

SelectedCodeSet? string? - Selected Set of the Usage Decision

InspSubsetUsageDcsnCodeGroup? string? - Code Group of the Usage Decision

InspSubsetUsageDcsnCode? string? -

InspSubsetUsageDcsnValuation? string? -

InspectionSubsetTime? string? -

InspectionSubsetDate? string? -

InspSubsetLongNumericKey? string? -

InspSubsetShortNumericKey? string? -

InspectionSubsetLongCharKey? string? -

InspectionSubsetShortCharKey? string? -

InspectionPartialLot? string? - Partial Lot Number

Inspector? string? - Name of Inspector

InspectionSubsetYieldQty? string? - Inspection Point Yield

InspectionSubsetScrapQty? string? - Scrap for Inspection Point

InspectionSubsetReworkQty? string? - Rework Quantity for Inspection Point

InspectionSubsetQtyUnit? string? - Unit of Measure for Inspection Point

sap.s4hana.api_inspectionlot_srv: CreateA_InspectionSubsetTrigger_valuationQueries

Represents the Queries record for the operation: createA_InspectionSubsetTrigger_valuation

Fields

InspPlanOperationInternalID string - Current Node No.
(Value needs to be enclosed in single quotes)

InspectionSubsetInternalID string - Sample
(Value needs to be enclosed in single quotes)

InspectionLot string - Inspection Lot
(Value needs to be enclosed in single quotes)

sap.s4hana.api_inspectionlot_srv: CreateA_InspLotMatlDocItem

Fields

InspectionLot string - Inspection Lot Number

InspLotMatlDocItem string - Internal Counter for DB Objects

InspLotQtyPosted? string? - Quantity in unit of entry

UsageDecisionStockType? string? - Posting Proposal in Usage Decision

StorageLocation? string? -

InspLotMaterialPostedTo? string? -

InspLotBatchTransferredTo? string? -

MaterialDocumentItemText? string? - Item Text

ChangedDateTime? string? - UTC Time Stamp in Short Form (YYYYMMDDhhmmss)

to_InspLotMatlDocItmSrlNmbr? CreateA_InspLotMatlDocItem_to_InspLotMatlDocItmSrlNmbr -

sap.s4hana.api_inspectionlot_srv: CreateA_InspLotMatlDocItem_to_InspLotMatlDocItmSrlNmbr

Fields

results? CreateA_InspLotMatlDocItmSrlNmbr[] -

sap.s4hana.api_inspectionlot_srv: CreateA_InspLotMatlDocItmSrlNmbr

Fields

InspectionLot string - Inspection Lot Number

SerialNumber? string? -

sap.s4hana.api_inspectionlot_srv: CreateA_InspLotUsageDecision

Fields

InspectionLot string - Inspection Lot Number

InspLotUsageDecisionLevel? string? - Inspection Lot, Partial Lot, Single Unit, Interval

InspectionLotQualityScore? string? -

InspLotUsageDecisionCatalog? string? -

SelectedCodeSetPlant? string? -

InspLotUsgeDcsnSelectedSet? string? - Selected Set of the Usage Decision

InspLotUsageDecisionCodeGroup? string? -

InspectionLotUsageDecisionCode? string? -

InspLotUsgeDcsnDynValuation? string? - Dynamic Modif. Valuation According to Worst Case Principle

InspLotUsageDecisionValuation? string? -

InspLotUsgeDcsnFollowUpAction? string? -

InspectionLotUsageDecidedBy? string? -

InspectionLotUsageDecidedOn? string? - Date When Usage Decision Was Made

InspLotUsageDecisionTime? string? - Time When Usage Decision Was Made

InspLotUsageDecisionChangedBy? string? -

InspLotUsageDecisionChangedOn? string? - Date When Usage Decision Was Changed

InspLotUsgeDcsnChangedTime? string? - Time When Usage Decision Was Changed

InspLotUsgeDcsnHasLongText? boolean? -

ChangedDateTime? string? - UTC Time Stamp in Short Form (YYYYMMDDhhmmss)

sap.s4hana.api_inspectionlot_srv: CreateA_InspSampleResult

Fields

InspectionLot string - Inspection Lot Number

InspPlanOperationInternalID string - Current Node Number from Order Counter

InspectionCharacteristic string - Inspection Characteristic Number

InspectionSubsetInternalID string - Number of Partial Sample

Inspector? string? - Name of Inspector

InspectionResultStatus? string? - Results Record Status

InspectionResultOrigin? string? - Origin of Results Data

InspectionStartDate? string? - Start Date in Local Time Zone of Inspection

InspectionStartTime? string? - Start Time in Local Time Zone of Inspection

InspectionEndDate? string? - End Date in Local Time Zone of Inspection

InspectionEndTime? string? - End Time in Local Time Zone of Inspection

InspectionResultAttribute? string? - Attribute of Results Record (Valid, Invalid,...)

InspectionValuationResult? string? - Inspection Result Valuation

InspResultFrmtdMeanValue? string? - Arithmetic Mean of Valid Measured Values (Formatted)

InspResultFrmtdMaximumValue? string? - Maximum Value of Valid Measured Values - formatted

InspResultFrmtdMinimumValue? string? - Minimum Value of Valid Measured Values (Formatted)

InspectionResultOriginalValue? string? - Original Value Before Input Processing

InspResultValidValuesNumber? int? - Number of Inspected Sample Units

InspResultNmbrOfRecordedRslts? Signed32? - Number of Recorded Sample Units

InspectionResultText? string? -

InspRsltFreeDefinedTestEquip? string? - General Information

InspRsltBelowToleranceValsNmbr? int? - Number of Measured Values Below Tolerance Range

InspRsltAboveToleranceValsNmbr? int? - Number of Measured Values Above Tolerance Range

InspResultFrmtdVariance? string? - Dispersion (Variance) of Valid Measured Values (Formatted)

InspRsltNonconformingValsNmbr? int? - Number of Nonconforming Sample Units

CharacteristicAttributeCodeGrp? string? -

InspectionResultCodeGroup2? string? -

InspectionResultCodeGroup3? string? -

InspectionResultCodeGroup4? string? -

InspectionResultCodeGroup5? string? -

CharacteristicAttributeCode? string? -

InspectionResultCode2? string? -

InspectionResultCode3? string? -

InspectionResultCode4? string? -

InspectionResultCode5? string? -

CharacteristicAttributeCatalog? string? - Catalog Type of Assigned Code Group or Selected Set

InspectionResultCatalog2? string? - Catalog Type of Assigned Code Group or Selected Set

InspectionResultCatalog3? string? - Catalog Type of Assigned Code Group or Selected Set

InspectionResultCatalog4? string? - Catalog Type of Assigned Code Group or Selected Set

InspectionResultCatalog5? string? - Catalog Type of Assigned Code Group or Selected Set

sap.s4hana.api_inspectionlot_srv: GetA_InspectionCharacteristicQueries

Represents the Queries record for the operation: getA_InspectionCharacteristic

Fields

\$expand? A_InspectionCharacteristicExpandOptions - Expand related entities, see Expand

\$select? A_InspectionCharacteristicSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: GetA_InspectionLotQueries

Represents the Queries record for the operation: getA_InspectionLot

Fields

\$expand? A_InspectionLotExpandOptions - Expand related entities, see Expand

\$select? A_InspectionLotSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: GetA_InspectionLotWithStatusQueries

Represents the Queries record for the operation: getA_InspectionLotWithStatus

Fields

\$select? A_InspectionLotWithStatusSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: GetA_InspectionOperationQueries

Represents the Queries record for the operation: getA_InspectionOperation

Fields

\$select? A_InspectionOperationSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: GetA_InspectionResultQueries

Represents the Queries record for the operation: getA_InspectionResult

Fields

\$select? A_InspectionResultSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: GetA_InspectionResultValueQueries

Represents the Queries record for the operation: getA_InspectionResultValue

Fields

\$select? A_InspectionResultValueSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: GetA_InspectionSubsetQueries

Represents the Queries record for the operation: getA_InspectionSubset

Fields

\$select? A_InspectionSubsetSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: GetA_InspLotMatlDocItemQueries

Represents the Queries record for the operation: getA_InspLotMatlDocItem

Fields

\$expand? A_InspLotMatlDocItemExpandOptions - Expand related entities, see Expand

\$select? A_InspLotMatlDocItemSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: GetA_InspLotMatlDocItmSrlNmbrQueries

Represents the Queries record for the operation: getA_InspLotMatlDocItmSrlNmbr

Fields

\$select? A_InspLotMatlDocItmSrlNmbrSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: GetA_InspLotSerialNumberQueries

Represents the Queries record for the operation: getA_InspLotSerialNumber

Fields

\$select? A_InspLotSerialNumberSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: GetA_InspLotUsageDecisionQueries

Represents the Queries record for the operation: getA_InspLotUsageDecision

Fields

\$select? A_InspLotUsageDecisionSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: GetA_InspSampleCharacteristicQueries

Represents the Queries record for the operation: getA_InspSampleCharacteristic

Fields

\$select? A_InspSampleCharacteristicSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: GetA_InspSampleResultQueries

Represents the Queries record for the operation: getA_InspSampleResult

Fields

\$select? A_InspSampleResultSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: GetInspectionLotWithStatusOfA_InspectionLotQueries

Represents the Queries record for the operation: getInspectionLotWithStatusOfA_InspectionLot

Fields

\$select? InspectionLotWithStatusOfA_InspectionLotSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: ListA_InspectionCharacteristicsQueries

Represents the Queries record for the operation: listA_InspectionCharacteristics

Fields

\$skip? int - Skip the first n items, see Paging - Skip

\$top? int - Show only the first n items, see Paging - Top

\$filter? string - Filter items by property values, see Filtering

\$orderby? A_InspectionCharacteristicOrderByOptions - Order items by property values, see Sorting

\$expand? A_InspectionCharacteristicExpandOptions - Expand related entities, see Expand

\$inlinecount? "allpages"|"none" - Include count of items, see Inlinecount

\$select? A_InspectionCharacteristicSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: ListA_InspectionLotsQueries

Represents the Queries record for the operation: listA_InspectionLots

Fields

\$skip? int - Skip the first n items, see Paging - Skip

\$top? int - Show only the first n items, see Paging - Top

\$filter? string - Filter items by property values, see Filtering

\$orderby? A_InspectionLotOrderByOptions - Order items by property values, see Sorting

\$expand? A_InspectionLotExpandOptions - Expand related entities, see Expand

\$inlinecount? "allpages"|"none" - Include count of items, see Inlinecount

\$select? A_InspectionLotSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: ListA_InspectionLotWithStatusesQueries

Represents the Queries record for the operation: listA_InspectionLotWithStatuses

Fields

\$skip? int - Skip the first n items, see Paging - Skip

\$top? int - Show only the first n items, see Paging - Top

\$filter? string - Filter items by property values, see Filtering

\$orderby? A_InspectionLotWithStatusOrderByOptions - Order items by property values, see Sorting

\$inlinecount? "allpages"|"none" - Include count of items, see Inlinecount

\$select? A_InspectionLotWithStatusSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: ListA_InspectionOperationsQueries

Represents the Queries record for the operation: listA_InspectionOperations

Fields

\$skip? int - Skip the first n items, see Paging - Skip

\$top? int - Show only the first n items, see Paging - Top

\$filter? string - Filter items by property values, see Filtering

\$orderby? A_InspectionOperationOrderByOptions - Order items by property values, see Sorting

\$inlinecount? "allpages"|"none" - Include count of items, see Inlinecount

\$select? A_InspectionOperationSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: ListA_InspectionResultsQueries

Represents the Queries record for the operation: listA_InspectionResults

Fields

\$skip? int - Skip the first n items, see Paging - Skip

\$top? int - Show only the first n items, see Paging - Top

\$filter? string - Filter items by property values, see Filtering

\$orderby? A_InspectionResultOrderByOptions - Order items by property values, see Sorting

\$inlinecount? "allpages"|"none" - Include count of items, see Inlinecount

\$select? A_InspectionResultSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: ListA_InspectionResultValuesQueries

Represents the Queries record for the operation: listA_InspectionResultValues

Fields

\$skip? int - Skip the first n items, see Paging - Skip

\$top? int - Show only the first n items, see Paging - Top

\$filter? string - Filter items by property values, see Filtering

\$orderby? A_InspectionResultValueOrderByOptions - Order items by property values, see Sorting

\$inlinecount? "allpages"|"none" - Include count of items, see Inlinecount

\$select? A_InspectionResultValueSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: ListA_InspectionSubsetsQueries

Represents the Queries record for the operation: listA_InspectionSubsets

Fields

\$skip? int - Skip the first n items, see Paging - Skip

\$top? int - Show only the first n items, see Paging - Top

\$filter? string - Filter items by property values, see Filtering

\$orderby? A_InspectionSubsetOrderByOptions - Order items by property values, see Sorting

\$inlinecount? "allpages"|"none" - Include count of items, see Inlinecount

\$select? A_InspectionSubsetSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: ListA_InspLotMatlDocItemsQueries

Represents the Queries record for the operation: listA_InspLotMatlDocItems

Fields

\$skip? int - Skip the first n items, see Paging - Skip

\$top? int - Show only the first n items, see Paging - Top

\$filter? string - Filter items by property values, see Filtering

\$orderby? A_InspLotMatlDocItemOrderByOptions - Order items by property values, see Sorting

\$expand? A_InspLotMatlDocItemExpandOptions - Expand related entities, see Expand

\$inlinecount? "allpages"|"none" - Include count of items, see Inlinecount

\$select? A_InspLotMatlDocItemSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: ListA_InspLotMatlDocItmSrlNmbrsQueries

Represents the Queries record for the operation: listA_InspLotMatlDocItmSrlNmbrs

Fields

\$skip? int - Skip the first n items, see Paging - Skip

\$top? int - Show only the first n items, see Paging - Top

\$filter? string - Filter items by property values, see Filtering

\$orderby? A_InspLotMatlDocItmSrlNmbrOrderByOptions - Order items by property values, see Sorting

\$inlinecount? "allpages"|"none" - Include count of items, see Inlinecount

\$select? A_InspLotMatlDocItmSrlNmbrSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: ListA_InspLotSerialNumbersQueries

Represents the Queries record for the operation: listA_InspLotSerialNumbers

Fields

\$skip? int - Skip the first n items, see Paging - Skip

\$top? int - Show only the first n items, see Paging - Top

\$filter? string - Filter items by property values, see Filtering

\$orderby? A_InspLotSerialNumberOrderByOptions - Order items by property values, see Sorting

\$inlinecount? "allpages"|"none" - Include count of items, see Inlinecount

\$select? A_InspLotSerialNumberSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: ListA_InspLotUsageDecisionsQueries

Represents the Queries record for the operation: listA_InspLotUsageDecisions

Fields

\$skip? int - Skip the first n items, see Paging - Skip

\$top? int - Show only the first n items, see Paging - Top

\$filter? string - Filter items by property values, see Filtering

\$orderby? A_InspLotUsageDecisionOrderByOptions - Order items by property values, see Sorting

\$inlinecount? "allpages"|"none" - Include count of items, see Inlinecount

\$select? A_InspLotUsageDecisionSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: ListA_InspSampleCharacteristicsQueries

Represents the Queries record for the operation: listA_InspSampleCharacteristics

Fields

\$skip? int - Skip the first n items, see Paging - Skip

\$top? int - Show only the first n items, see Paging - Top

\$filter? string - Filter items by property values, see Filtering

\$orderby? A_InspSampleCharacteristicOrderByOptions - Order items by property values, see Sorting

\$inlinecount? "allpages"|"none" - Include count of items, see Inlinecount

\$select? A_InspSampleCharacteristicSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: ListA_InspSampleResultsQueries

Represents the Queries record for the operation: listA_InspSampleResults

Fields

\$skip? int - Skip the first n items, see Paging - Skip

\$top? int - Show only the first n items, see Paging - Top

\$filter? string - Filter items by property values, see Filtering

\$orderby? A_InspSampleResultOrderByOptions - Order items by property values, see Sorting

\$inlinecount? "allpages"|"none" - Include count of items, see Inlinecount

\$select? A_InspSampleResultSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: ListInspLotMatlDocItmSrlNmbrsOfA_InspLotMatlDocItemQueries

Represents the Queries record for the operation: listInspLotMatlDocItmSrlNmbrsOfA_InspLotMatlDocItem

Fields

\$skip? int - Skip the first n items, see Paging - Skip

\$top? int - Show only the first n items, see Paging - Top

\$filter? string - Filter items by property values, see Filtering

\$orderby? InspLotMatlDocItmSrlNmbrOfA_InspLotMatlDocItemOrderByOptions - Order items by property values, see Sorting

\$inlinecount? "allpages"|"none" - Include count of items, see Inlinecount

\$select? InspLotMatlDocItmSrlNmbrOfA_InspLotMatlDocItemSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: ListInspResultValuesOfA_InspectionCharacteristicQueries

Represents the Queries record for the operation: listInspResultValuesOfA_InspectionCharacteristic

Fields

\$skip? int - Skip the first n items, see Paging - Skip

\$top? int - Show only the first n items, see Paging - Top

\$filter? string - Filter items by property values, see Filtering

\$orderby? InspResultValueOfA_InspectionCharacteristicOrderByOptions - Order items by property values, see Sorting

\$inlinecount? "allpages"|"none" - Include count of items, see Inlinecount

\$select? InspResultValueOfA_InspectionCharacteristicSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: ListInspSmplResultsOfA_InspectionCharacteristicQueries

Represents the Queries record for the operation: listInspSmplResultsOfA_InspectionCharacteristic

Fields

\$skip? int - Skip the first n items, see Paging - Skip

\$top? int - Show only the first n items, see Paging - Top

\$filter? string - Filter items by property values, see Filtering

\$orderby? InspSmplResultOfA_InspectionCharacteristicOrderByOptions - Order items by property values, see Sorting

\$inlinecount? "allpages"|"none" - Include count of items, see Inlinecount

\$select? InspSmplResultOfA_InspectionCharacteristicSelectOptions - Select properties to be returned, see Select

sap.s4hana.api_inspectionlot_srv: Modified\ A_InspectionLotType

Fields

d? UpdateA_InspectionLot -

sap.s4hana.api_inspectionlot_srv: Modified\ A_InspectionResultType

Fields

d? UpdateA_InspectionResult -

sap.s4hana.api_inspectionlot_srv: Modified\ A_InspectionResultValueType

Fields

d? UpdateA_InspectionResultValue -

sap.s4hana.api_inspectionlot_srv: Modified\ A_InspectionSubsetType

Fields

d? UpdateA_InspectionSubset -

sap.s4hana.api_inspectionlot_srv: Modified\ A_InspLotUsageDecisionType

Fields

d? UpdateA_InspLotUsageDecision -

sap.s4hana.api_inspectionlot_srv: Modified\ A_InspSampleResultType

Fields

d? UpdateA_InspSampleResult -

sap.s4hana.api_inspectionlot_srv: OAuth2RefreshTokenGrantConfig

Closed record

OAuth2 Refresh Token Grant Configs

Fields

Fields Included from *OAuth2RefreshTokenGrantConfig

refreshUrl string
refreshToken string
clientId string
clientSecret string
scopes string|string[]
defaultTokenExpTime decimal
clockSkew decimal
optionalParams map<string>
credentialBearer CredentialBearer
clientConfig ClientConfiguration

refreshUrl string(default "https://{host}:{port}") - Refresh URL

sap.s4hana.api_inspectionlot_srv: UpdateA_InspectionLot

Fields

Material? string? - Material Number

Batch? string? - Batch Number

Plant? string? -

InspectionLotOrigin? string? -

OrderInternalBillOfOperations? string? - Routing number of operations in the order

ManufacturingOrder? string? - Order Number (Production Order)

InspectionLotText? string? -

InspectionLotType? string? -

InspectionLotQuantity? string? -

InspectionLotActualQuantity? string? -

InspectionLotDefectiveQuantity? string? -

InspectionLotQuantityUnit? string? - Base Unit of Measure for Inspection Lot Quantity

InspLotCreatedOnLocalDate? string? - Date in Time Zone Where Lot Created

InspSubsetFieldCombination? string? - Identifier for Inspection Point Field Combination

InspLotNmbrOpenLongTermCharc? int? -

StatusObject? string? -

StatusObjectCategory? string? -

InspectionLotObjectText? string? - Short Text for Inspection Object

StatusProfile? string? -

MatlQualityAuthorizationGroup? string? - Material Authorization Group for Activities in QM

InspectionLotHasQuantity? boolean? -

InspLotIsCreatedAutomatically? boolean? - Inspection Lot Is Created Automatically

InspectionLotHasPartialLots? boolean? -

InspectionLotHasAppraisalCosts? boolean? - Record Appraisal Costs in Individual QM Order

InspLotHasSubsets? boolean? - Inspection with Inspection Points

InspLotIsAutomUsgeDcsnPossible? boolean? -

PurchasingDocumentCategory? string? - Source Inspection

InspLotHasConfignSpecification? boolean? - Inspection Specifications from Configuration

GoodsReceiptIsMovedToBlkdStock? string? -

InspLotIsDocumentationRequired? boolean? -

InspLotIsTaskListRequired? boolean? -

InspLotHasManualSampleSize? boolean? - Enter Sample Manually

InspLotHasMaterialSpec? boolean? -

InspectionLotApproval? string? -

InspLotDigitalSgntrResultsRecg? string? - Digital Signature for Insp. Lot in Results Recording

InspLotDigitalSgntrInUsgeDcsn? string? -

InspLotIsBatchRequired? boolean? - Approved Batch Record Required

InspLotUsageInStabilityStudy? string? - Inspection Lot for Stability Study

InspLotIsStockPostingCompleted? boolean? -

InspectionLotHasUsageDecision? boolean? -

NumberOfSerialNumbers? Signed32? - Number of serial numbers

InspLotIsSerialNmbrPossible? boolean? - Serial Numbers Possible for Inspection Lot

InspectionLotIsSkipped? boolean? -

InspectionLotIsFullInspection? boolean? -

InspectionLotDynamicLevel? string? - Level at Which Dynamic Modification Parameters Are Defined

SamplingProcedure? string? -

InspLotCreatedOnLocalTime? string? - Time in Time Zone Where Lot Created

InspectionLotCreatedBy? string? - Name of User Who Created the Data Record

InspectionLotCreatedOn? string? - System Date on Which Data Record Was Created

InspectionLotCreatedOnTime? string? - System Time of Creation

InspectionLotChangedBy? string? - Name of User Who Last Changed Data Record

InspectionLotChangeDate? string? - System Date on Which Data Record Was Changed

InspectionLotChangeTime? string? - System Time of Change

ChangedDateTime? string? - UTC Time Stamp in Short Form (YYYYMMDDhhmmss)

InspectionLotStartDate? string? - Start Date of Inspection in Local Time Zone

InspectionLotStartTime? string? -

InspectionLotEndDate? string? - End Date of Inspection in Local Time Zone

InspectionLotEndTime? string? -

BillOfOperationsType? string? -

BillOfOperationsGroup? string? -

BillOfOperationsUsage? string? -

BillOfOperationsVariant? string? -

BillOfOperationsChangeStateID? string? - Internal counter

InspectionSubsetType? string? -

SmplDrawingProcedure? string? -

SmplDrawingProcedureVersion? string? - Version No. of the Sample-Drawing Procedure

SmplDrwgProcedIsConfRequired? boolean? - Confirmation Required for Sample Drawing

InspLotSelectionMaterial? string? - Material Number

InspLotSelMatlRevisionLvl? string? -

InspLotSelectionPlant? string? -

InspLotSelectionSupplier? string? - Supplier's Account Number

InspLotSelectionManufacturer? string? - Number of Manufacturer

InspLotSelectionCustomer? string? - Account number of customer

InspLotSelBillOfOperationsUsge? string? - Task List Usage

InspLotSelectionValidFromDate? string? - Key Date for Selecting Records or Changing Task Lists

ProductionVersion? string? -

SalesOperationsPlanningOrder? string? -

IsBusinessPurposeCompleted? string? - Business Purpose Completed Flag

Customer? string? -

Supplier? string? - Supplier's Account Number

BatchBySupplier? string? - Supplier Batch Number

Manufacturer? string? - Number of Manufacturer

ManufacturerPartNmbr? string? -

MaterialRevisionLevel? string? -

MaterialIsBatchManaged? boolean? -

BatchStorageLocation? string? -

MaterialCompIsSpecialStock? string? - Special Stock Indicator

PurchasingOrganization? string? -

PurchasingDocument? string? -

PurchasingDocumentItem? string? -

ScheduleLine? string? - Delivery Schedule Line Counter

AccountingDocumentType? string? -

MaterialDocumentYear? string? -

MaterialDocument? string? - Number of Material Document

MaterialDocumentItem? string? -

MatlDocLatestPostgDate? string? - Posting Date in the Document

GoodsMovementType? string? - Movement Type (Inventory Management)

InspectionLotPlant? string? -

InspectionLotStorageLocation? string? - Storage Location for Inspection Lot Stock

Warehouse? string? - Warehouse Number / Warehouse Complex

StorageType? string? -

StorageBin? string? -

SalesOrder? string? - Sales Order Number

SalesOrderItem? string? -

DeliveryDocument? string? -

DeliveryDocumentItem? string? -

DeliveryCategory? string? - Delivery Category

InspectionDeliveryCategory? string? - Delivery Category

Route? string? -

BillToPartyCountry? string? - Destination Country/Region

SoldToParty? string? -

SalesOrganization? string? -

MaterialByCustomer? string? -

Language? string? -

InspLotNmbrAddlRecordedCharc? int? - Number of Characteristics Recorded Additionally

InspLotNmbrOpenShortTermCharc? int? - Number of Outstanding Short-Term Chars That Require Confirm.

InspectionLotContainer? string? - QM - No. of Containers

InspectionLotContainerUnit? string? -

InspectionLotSampleQuantity? string? - Inspection Sample Size

InspectionLotSampleUnit? string? -

InspLotDynamicRule? string? -

InspLotDynamicTrggrPoint? string? - Time of Dynamic Modification in Inspection Lot

InspectionDynamicStage? string? -

InspectionSeverity? string? -

InspLotQtyToFree? string? -

InspLotQtyToScrap? string? -

InspLotQtyToSample? string? - Quantity Posted to Sample

InspLotQtyToBlocked? string? -

InspLotQtyToReserves? string? - Quantity Posted to Reserves

InspLotQtyToAnotherMaterial? string? -

InspLotMaterialPostedTo? string? -

InspLotBatchTransferredTo? string? -

InspLotQtyReturnedToSupplier? string? -

InspLotQtyToSpecialStock? string? -

InspLotQtyToOtherStock? string? -

InspLotQtyToBePosted? string? -

InspLotSmplQtyForLongTermChar? string? -

InspLotQtyInspected? string? -

InspLotQtyDestroyed? string? -

InspectionLotScrapRatio? decimal|string? - Share of Scrap in Inspection Lot

InspLotUsageDecisionTool? string? - Usage Decision Mode (UD Origin)

InspectionLotAllowedScrapRatio? decimal|string? - Allowed Share of Scrap

QualityCostCollector? string? - Order Number for Recording Appraisal Costs

ConsumptionPosting? string? - Consumption posting

AccountAssignmentCategory? string? - Account Assignment Category

PurchasingDocumentItemCategory? string? - Item category in purchasing document

InspLotAcctAssgmtKey? string? - Account Assignment Key: Inspection Lot

CostCenter? string? -

ReservationItem? string? - Item Number of Reservation / Dependent Requirements

MasterFixedAsset? string? - Main Asset Number

FixedAsset? string? - Asset Subnumber

SalesOrdStockWBSElement? string? - Valuated Sales Order Stock WBS Element

ProjectNetwork? string? - Network Number for Account Assignment

NetworkActivityInternalID? string? - Internal counter

InventorySpclStkSalesDocument? string? -

InventorySpclStkSalesDocItm? string? - Sales Order Item of Valuated Sales Order Stock

ProfitabilitySegment? string? -

ProfitCenter? string? -

BusinessArea? string? -

GLAccount? string? - G/L Account Number

ControllingArea? string? -

CompanyCode? string? -

SerialNumberProfile? string? - Serial Number Profile

InspLotCostCollectorSalesOrder? string? - Sales Order Number

InspLotCostCollectorSlsOrdItem? string? - Item Number in Sales Order

InspLotCostCollectorWBSElement? string? - Work Breakdown Structure Element (WBS Element)

InspLotExternalNumber? string? -

InspectionLotPriorityPoints? Signed32? -

MaintenancePlan? string? -

MaintenancePlanItemIntID? string? -

MaintenanceStrategy? string? -

sap.s4hana.api_inspectionlot_srv: UpdateA_InspectionResult

Fields

InspectionResultStatus? string? - Results Record Status

InspectionResultAttribute? string? - Attribute of Results Record (Valid, Invalid,...)

InspectionResultOrigin? string? - Origin of Results Data

Inspector? string? - Name of Inspector

InspectionValuationResult? string? - Inspection Result Valuation

InspResultFrmtdMeanValue? string? - Arithmetic Mean of Valid Measured Values (Formatted)

InspResultFrmtdMaximumValue? string? - Maximum Value of Valid Measured Values - formatted

InspResultFrmtdMinimumValue? string? - Minimum Value of Valid Measured Values (Formatted)

InspectionResultOriginalValue? string? - Original Value Before Input Processing

InspResultValidValuesNumber? Signed32? - Number of Inspected Sample Units

InspectionResultText? string? - Inspection Description for Summarized Result

InspectionResultHasLongText? string? - Inspection Characteristic Long Text Exists

CharacteristicAttributeCatalog? string? - Catalog Type of Assigned Code Group or Selected Set

CharacteristicAttributeCodeGrp? string? -

CharacteristicAttributeCode? string? -

InspRsltFreeDefinedTestEquip? string? - General Information

InspRsltBelowToleranceValsNmbr? Signed32? - Number of Measured Values Below Tolerance Range

InspRsltAboveToleranceValsNmbr? Signed32? - Number of Measured Values Above Tolerance Range

InspRsltNonconformingValsNmbr? Signed32? - Number of Nonconforming Sample Units

InspectionNumberOfDefects? Signed32? - Number of Defects Found

InspResultFrmtdVariance? string? - Dispersion (Variance) of Valid Measured Values (Formatted)

InspectionResultCatalog2? string? - Catalog Type of Assigned Code Group or Selected Set

InspectionResultCatalog3? string? - Catalog Type of Assigned Code Group or Selected Set

InspectionResultCatalog4? string? - Catalog Type of Assigned Code Group or Selected Set

InspectionResultCatalog5? string? - Catalog Type of Assigned Code Group or Selected Set

InspectionResultCode2? string? -

InspectionResultCode3? string? -

InspectionResultCode4? string? -

InspectionResultCode5? string? -

InspectionResultCodeGroup2? string? -

InspectionResultCodeGroup3? string? -

InspectionResultCodeGroup4? string? -

InspectionResultCodeGroup5? string? -

InspectionPartialSampleSize? int? - Number of Partial Samples for Characteristic

InspectionStartDate? string? - Start Date in Local Time Zone of Inspection

InspectionStartTime? string? - Start Time in Local Time Zone of Inspection

InspectionEndDate? string? -

InspectionEndTime? string? - End Time in Local Time Zone of Inspection

sap.s4hana.api_inspectionlot_srv: UpdateA_InspectionResultValue

Fields

InspectionResultAttribute? string? - Attribute of Results Record (Valid, Invalid,...)

InspResultItemInternalID? string? - Counter for Inspection Unit Number

InspectionSubsetInternalID? string? - Inspection Sample Number

InspResultFrmtdMeasuredValue? string? - Measured Value for a Sample Unit - formatted

InspectionResultOriginalValue? string? - Original Value Before Input Processing

InspectionNumberOfDefects? int? - Number of Defects Found

InspectionResultText? string? -

InspLotSingleUnitNumber? string? - Number of Single Unit in Inspection Lot

InspectionResultItem? string? - Single-Unit Number for the Unit to Be Inspected

InspRsltFreeDefinedTestEquip? string? - General Information

InspectionValuationResult? string? - Inspection Result Valuation

CharacteristicAttributeCodeGrp? string? -

InspectionResultCodeGroup2? string? -

InspectionResultCodeGroup3? string? -

InspectionResultCodeGroup4? string? -

InspectionResultCodeGroup5? string? -

CharacteristicAttributeCode? string? -

InspectionResultCode2? string? -

InspectionResultCode3? string? -

InspectionResultCode4? string? -

InspectionResultCode5? string? -

Inspector? string? - Name of Inspector

InspectionStartDate? string? - Start Date in Local Time Zone of Inspection

InspectionStartTime? string? - Start Time in Local Time Zone of Inspection

InspectionEndDate? string? - End Date in Local Time Zone of Inspection

InspectionEndTime? string? - End Time in Local Time Zone of Inspection

sap.s4hana.api_inspectionlot_srv: UpdateA_InspectionSubset

Fields

MaterialSample? string? - Material Sample Number

Equipment? string? - Equipment Number

FunctionalLocation? string? -

ShopFloorItem? string? - ID of Serialized Material

SelectedCodeSetPlant? string? -

SelectedCodeSet? string? - Selected Set of the Usage Decision

InspSubsetUsageDcsnCodeGroup? string? - Code Group of the Usage Decision

InspSubsetUsageDcsnCode? string? -

InspSubsetUsageDcsnValuation? string? -

InspectionSubsetTime? string? -

InspectionSubsetDate? string? -

InspSubsetLongNumericKey? string? -

InspSubsetShortNumericKey? string? -

InspectionSubsetLongCharKey? string? -

InspectionSubsetShortCharKey? string? -

InspectionPartialLot? string? - Partial Lot Number

Inspector? string? - Name of Inspector

InspectionSubsetYieldQty? string? - Inspection Point Yield

InspectionSubsetScrapQty? string? - Scrap for Inspection Point

InspectionSubsetReworkQty? string? - Rework Quantity for Inspection Point

InspectionSubsetQtyUnit? string? - Unit of Measure for Inspection Point

sap.s4hana.api_inspectionlot_srv: UpdateA_InspLotUsageDecision

Fields

InspLotUsageDecisionLevel? string? - Inspection Lot, Partial Lot, Single Unit, Interval

InspectionLotQualityScore? string? -

InspLotUsageDecisionCatalog? string? -

SelectedCodeSetPlant? string? -

InspLotUsgeDcsnSelectedSet? string? - Selected Set of the Usage Decision

InspLotUsageDecisionCodeGroup? string? -

InspectionLotUsageDecisionCode? string? -

InspLotUsgeDcsnDynValuation? string? - Dynamic Modif. Valuation According to Worst Case Principle

InspLotUsageDecisionValuation? string? -

InspLotUsgeDcsnFollowUpAction? string? -

InspectionLotUsageDecidedBy? string? -

InspectionLotUsageDecidedOn? string? - Date When Usage Decision Was Made

InspLotUsageDecisionTime? string? - Time When Usage Decision Was Made

InspLotUsageDecisionChangedBy? string? -

InspLotUsageDecisionChangedOn? string? - Date When Usage Decision Was Changed

InspLotUsgeDcsnChangedTime? string? - Time When Usage Decision Was Changed

InspLotUsgeDcsnHasLongText? boolean? -

ChangedDateTime? string? - UTC Time Stamp in Short Form (YYYYMMDDhhmmss)

sap.s4hana.api_inspectionlot_srv: UpdateA_InspSampleResult

Fields

Inspector? string? - Name of Inspector

InspectionResultStatus? string? - Results Record Status

InspectionResultOrigin? string? - Origin of Results Data

InspectionStartDate? string? - Start Date in Local Time Zone of Inspection

InspectionStartTime? string? - Start Time in Local Time Zone of Inspection

InspectionEndDate? string? - End Date in Local Time Zone of Inspection

InspectionEndTime? string? - End Time in Local Time Zone of Inspection

InspectionResultAttribute? string? - Attribute of Results Record (Valid, Invalid,...)

InspectionValuationResult? string? - Inspection Result Valuation

InspResultFrmtdMeanValue? string? - Arithmetic Mean of Valid Measured Values (Formatted)

InspResultFrmtdMaximumValue? string? - Maximum Value of Valid Measured Values - formatted

InspResultFrmtdMinimumValue? string? - Minimum Value of Valid Measured Values (Formatted)

InspectionResultOriginalValue? string? - Original Value Before Input Processing

InspResultValidValuesNumber? int? - Number of Inspected Sample Units

InspResultNmbrOfRecordedRslts? Signed32? - Number of Recorded Sample Units

InspectionResultText? string? -

InspRsltFreeDefinedTestEquip? string? - General Information

InspRsltBelowToleranceValsNmbr? int? - Number of Measured Values Below Tolerance Range

InspRsltAboveToleranceValsNmbr? int? - Number of Measured Values Above Tolerance Range

InspResultFrmtdVariance? string? - Dispersion (Variance) of Valid Measured Values (Formatted)

InspRsltNonconformingValsNmbr? int? - Number of Nonconforming Sample Units

CharacteristicAttributeCodeGrp? string? -

InspectionResultCodeGroup2? string? -

InspectionResultCodeGroup3? string? -

InspectionResultCodeGroup4? string? -

InspectionResultCodeGroup5? string? -

CharacteristicAttributeCode? string? -

InspectionResultCode2? string? -

InspectionResultCode3? string? -

InspectionResultCode4? string? -

InspectionResultCode5? string? -

CharacteristicAttributeCatalog? string? - Catalog Type of Assigned Code Group or Selected Set

InspectionResultCatalog2? string? - Catalog Type of Assigned Code Group or Selected Set

InspectionResultCatalog3? string? - Catalog Type of Assigned Code Group or Selected Set

InspectionResultCatalog4? string? - Catalog Type of Assigned Code Group or Selected Set

InspectionResultCatalog5? string? - Catalog Type of Assigned Code Group or Selected Set

Array types

sap.s4hana.api_inspectionlot_srv: InspSmplResultOfA_InspectionCharacteristicOrderByOptions

InspSmplResultOfA_InspectionCharacteristicOrderByOptions

sap.s4hana.api_inspectionlot_srv: A_InspLotMatlDocItemSelectOptions

A_InspLotMatlDocItemSelectOptions

sap.s4hana.api_inspectionlot_srv: InspLotMatlDocItmSrlNmbrOfA_InspLotMatlDocItemOrderByOptions

InspLotMatlDocItmSrlNmbrOfA_InspLotMatlDocItemOrderByOptions

sap.s4hana.api_inspectionlot_srv: A_InspectionOperationOrderByOptions

A_InspectionOperationOrderByOptions

sap.s4hana.api_inspectionlot_srv: A_InspectionCharacteristicOrderByOptions

A_InspectionCharacteristicOrderByOptions

sap.s4hana.api_inspectionlot_srv: A_InspLotUsageDecisionOrderByOptions

A_InspLotUsageDecisionOrderByOptions

sap.s4hana.api_inspectionlot_srv: A_InspSampleResultOrderByOptions

A_InspSampleResultOrderByOptions

sap.s4hana.api_inspectionlot_srv: A_InspectionLotWithStatusOrderByOptions

A_InspectionLotWithStatusOrderByOptions

sap.s4hana.api_inspectionlot_srv: A_InspLotSerialNumberOrderByOptions

("InspectionLot"|"InspectionLot desc"|"SerialNumber"|"SerialNumber desc")[]

A_InspLotSerialNumberOrderByOptions

sap.s4hana.api_inspectionlot_srv: A_InspectionCharacteristicExpandOptions

("to_InspResultValue"|"to_InspSmplResult")[]

A_InspectionCharacteristicExpandOptions

sap.s4hana.api_inspectionlot_srv: A_InspectionLotOrderByOptions

A_InspectionLotOrderByOptions

sap.s4hana.api_inspectionlot_srv: A_InspectionResultOrderByOptions

A_InspectionResultOrderByOptions

sap.s4hana.api_inspectionlot_srv: A_InspLotMatlDocItemExpandOptions

("to_InspLotMatlDocItmSrlNmbr")[]

A_InspLotMatlDocItemExpandOptions

sap.s4hana.api_inspectionlot_srv: A_InspectionLotExpandOptions

("to_InspectionLotWithStatus")[]

A_InspectionLotExpandOptions

sap.s4hana.api_inspectionlot_srv: A_InspectionLotWithStatusSelectOptions

A_InspectionLotWithStatusSelectOptions

sap.s4hana.api_inspectionlot_srv: A_InspLotMatlDocItmSrlNmbrOrderByOptions

A_InspLotMatlDocItmSrlNmbrOrderByOptions

sap.s4hana.api_inspectionlot_srv: A_InspSampleCharacteristicOrderByOptions

A_InspSampleCharacteristicOrderByOptions

sap.s4hana.api_inspectionlot_srv: A_InspectionCharacteristicSelectOptions

A_InspectionCharacteristicSelectOptions

sap.s4hana.api_inspectionlot_srv: A_InspectionLotSelectOptions

A_InspectionLotSelectOptions

sap.s4hana.api_inspectionlot_srv: A_InspectionResultValueOrderByOptions

A_InspectionResultValueOrderByOptions

sap.s4hana.api_inspectionlot_srv: InspLotMatlDocItmSrlNmbrOfA_InspLotMatlDocItemSelectOptions

("InspectionLot"|"InspLotMatlDocItem"|"Equipment"|"SerialNumber"|"InspLotMatlDocItemType")[]

InspLotMatlDocItmSrlNmbrOfA_InspLotMatlDocItemSelectOptions

sap.s4hana.api_inspectionlot_srv: A_InspLotMatlDocItmSrlNmbrSelectOptions

("InspectionLot"|"InspLotMatlDocItem"|"Equipment"|"SerialNumber"|"InspLotMatlDocItemType")[]

A_InspLotMatlDocItmSrlNmbrSelectOptions

sap.s4hana.api_inspectionlot_srv: A_InspectionSubsetSelectOptions

A_InspectionSubsetSelectOptions

sap.s4hana.api_inspectionlot_srv: InspectionLotWithStatusOfA_InspectionLotSelectOptions

InspectionLotWithStatusOfA_InspectionLotSelectOptions

sap.s4hana.api_inspectionlot_srv: A_InspLotUsageDecisionSelectOptions

A_InspLotUsageDecisionSelectOptions

sap.s4hana.api_inspectionlot_srv: InspResultValueOfA_InspectionCharacteristicSelectOptions

InspResultValueOfA_InspectionCharacteristicSelectOptions

sap.s4hana.api_inspectionlot_srv: A_InspectionResultValueSelectOptions

A_InspectionResultValueSelectOptions

sap.s4hana.api_inspectionlot_srv: A_InspectionResultSelectOptions

A_InspectionResultSelectOptions

sap.s4hana.api_inspectionlot_srv: InspSmplResultOfA_InspectionCharacteristicSelectOptions

InspSmplResultOfA_InspectionCharacteristicSelectOptions

sap.s4hana.api_inspectionlot_srv: A_InspSampleCharacteristicSelectOptions

A_InspSampleCharacteristicSelectOptions

sap.s4hana.api_inspectionlot_srv: InspResultValueOfA_InspectionCharacteristicOrderByOptions

InspResultValueOfA_InspectionCharacteristicOrderByOptions

sap.s4hana.api_inspectionlot_srv: A_InspectionSubsetOrderByOptions

A_InspectionSubsetOrderByOptions

sap.s4hana.api_inspectionlot_srv: A_InspSampleResultSelectOptions

A_InspSampleResultSelectOptions

sap.s4hana.api_inspectionlot_srv: A_InspLotMatlDocItemOrderByOptions

A_InspLotMatlDocItemOrderByOptions

sap.s4hana.api_inspectionlot_srv: A_InspLotSerialNumberSelectOptions

("InspectionLot"|"SerialNumber")[]

A_InspLotSerialNumberSelectOptions

sap.s4hana.api_inspectionlot_srv: A_InspectionOperationSelectOptions

A_InspectionOperationSelectOptions

String types

sap.s4hana.api_inspectionlot_srv: count

string

count

The number of entities in the collection. Available when using the $inlinecount query option.

Import

import ballerinax/sap.s4hana.api_inspectionlot_srv;

Other versions

1.0.0

Metadata

Released date: 1 day ago

Version: 1.0.0

License: Apache-2.0

Compatibility

Platform: any

Ballerina version: 2201.13.0

GraalVM compatible: Yes

Pull count

Total: 1

Current verison: 1

Weekly downloads

Source repository

Keywords

Name/SAP S/4HANA Inspection Lot

Type/Connector

Vendor/SAP

Area/ERP & Business Operations

Business Management/ERP

Cost/Paid

S/4HANA

Quality Management

Quality Inspection

Inspection Lot

Usage Decision

Contributors

Dependencies

ballerinax/sap/1.4.0 ballerina/url/2.6.5 ballerina/constraint/1.7.2

Cookie policy

Delete policy

clients

records

arrayTypes

stringTypes

ballerinax/sap.s4hana.api_inspectionlot_srv Ballerina library

Overview

Key Features

Setup guide

Step 1: Create a communication user

Step 2: Create a communication system

Step 3: Create a communication arrangement

Step 4: Note the hostname

Quickstart

Step 1: Import the module

Step 2: Instantiate a new connector

Step 3: Invoke the connector operation

Step 4: Run the Ballerina application

Clients

sap.s4hana.api_inspectionlot_srv: Client

Constructor

createA_InspLotMatlDocItem

Parameters

Return Type

createA_InspLotUsageDecision

Parameters

Return Type

createA_InspSampleResult

Parameters

Return Type

createA_InspectionLot

Parameters

Return Type

createA_InspectionResult

Parameters

Return Type

createA_InspectionResultValue

Parameters

Return Type

createA_InspectionSubset

Parameters

Return Type

createA_InspectionSubsetTrigger_valuation

Parameters

Return Type

createInspResultValueOfA_InspectionCharacteristic

Parameters

Return Type

createInspSmplResultOfA_InspectionCharacteristic

Parameters

Return Type

getA_InspLotMatlDocItem

Parameters

Return Type

getA_InspLotMatlDocItmSrlNmbr

Parameters

Return Type

getA_InspLotSerialNumber

Parameters

Return Type

getA_InspLotUsageDecision

Parameters

Return Type

getA_InspSampleCharacteristic

Parameters

Return Type

getA_InspSampleResult

Parameters

Return Type

getA_InspectionCharacteristic

Parameters

Return Type

getA_InspectionLot

Parameters

Return Type

getA_InspectionLotWithStatus

Parameters

Return Type

getA_InspectionOperation

Parameters

Return Type
